106014-1
| Manufacturer | |
| Description | Conn Hard Metric PL 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER R/A 125 POS 2MM PCB Hard Metric Connectors 2MM TYPE B M Z-PACK Conn Hard Metric PL 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, PLUG, 125POS Z-PACK/B RAMH.125P. |
| Category |
Business
| Other Names | 1060141 | Product Category | Hard Metric Connectors |
| Standard Package | Trays | Factory Pack Quantity | 11 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS/Not ELV Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Depth | 26.8 mm | Pitch | 2 mm |
| Height | 17.2 mm | Weight | 0 |
| Packaging | Tray | Shield Type | No |
| Termination | Solder | Contact Type | Short Tail |
| Pitch - Post | :2mm | Housing Color | Gray |
| Mounting Type | Through Hole | Connector Type | Type B, 25 Column |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 5 | Connector Style | B 25 |
| Connector Usage | Backplane | Contact Material | Phosphor Bronze |
| Front Connection | Level 1 | Housing Material | Polyester GF |
| Length - Overall | 50.00 [1.968] | Termination Style | Press Fit |
| Mating Orientation | Without | Number of Contacts | 125 |
| Termination Finish | Tin-Lead over Nickel | Contact Termination | :Press Fit Right Angle |
| Number of Positions | 125 | Length - Post (Mating) | 3.71 [0.146] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Note | Warning: Card extender male connectors should not be used with cable connectors | Type | Hard Metric |
| Gender | Plug | Series | Z-Pack |
| Manufacturer | AMP | Product Type | Connector |
| Module/Board Type | No | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts

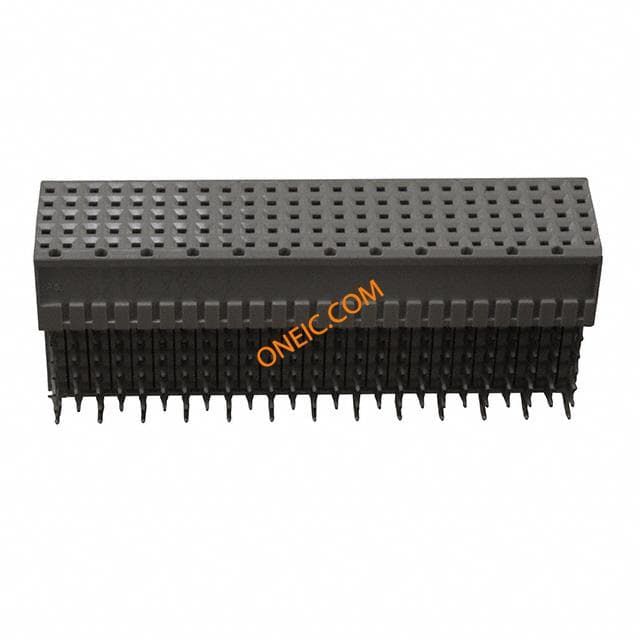

5352069-1
