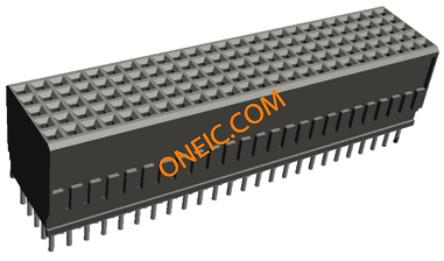

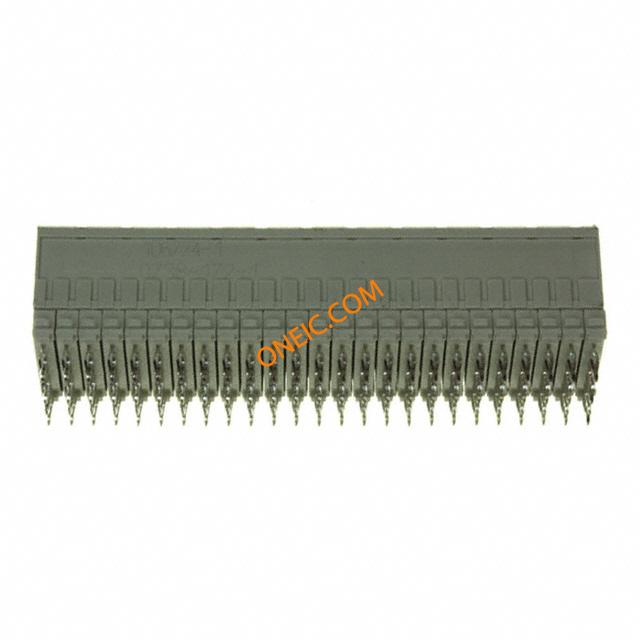

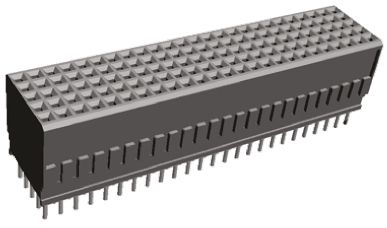

106774-1
| Manufacturer | |
| Description | Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RECEPT 125 POS VERT 2MM PCB Receptacle 125 way pcb 2mm Z-Pack Hard Metric Connectors 2MMHM VRT REC TYPE B Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HARD METRIC CONNECTOR, RECEPTACLE 125POS TE Connectivity Z-PACK HM 系列 2mm 节距 125 路 直向 5 排 母 背板连接器, 焊接端子, 1.5A |
| Category |
Business
| Product Category | Hard Metric Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 11 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85366930 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS/Not ELV Compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Depth | 11.4 mm | Pitch | 2 mm |
| Height | 12 mm | Weight | 0 |
| Packaging | Tube | Shield Type | No |
| Termination | Press Fit | Contact Type | Short Tail |
| Pitch - Post | :2mm | Housing Color | Gray |
| Mounting Type | Through Hole | Connector Type | Type B, 25 Column |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 5 | Connector Style | B 25 |
| Connector Usage | Backplane | Contact Material | Phosphor Bronze |
| Housing Material | Polyester GF | Length - Overall | 50.00 [1.968] |
| Termination Style | Press Fit | Mating Orientation | Without |
| Number of Contacts | 125 | Termination Finish | Tin-Lead over Nickel |
| Contact Termination | :Press Fit Vertical | Number of Positions | 125 |
| Length - Post (Mating) | 3.71 [0.146] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Hard Metric | Gender | Receptacle |
| Series | Z-PACK | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | No |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
