1375820-7
| Manufacturer | |
| Description | Conn Housing RCP 7 POS 2.54mm Crimp ST MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT HSNG 7POS CST-100 II CST-100 II Socket Housing 7P Headers & Wire Housings RCPT 7 POS CST-100 Conn Housing RCP 7 POS 2.54mm Crimp ST Product Highlights:CST-100 II HousingsNumber of Positions = 7Mating Type = ReceptacleWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 7POS, 2.54MM CST-100IIHOUSING7POS CST-100 II HOUSING 7 POS |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | CSA,UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - CST-100 II Series | Voltage Rating | 250 V |
| Switch Function | Latched | Current Rating (Max) | 6.5 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 12.95 mm |
| Pitch | 2.54 mm | Height | 6.6 mm |
| Length | 0.72in | Weight | 0.002 |
| Packaging | Bulk | Shrouding | No |
| Cable Exit | 180° | Wire Gauge | 22-28 AWG |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | White | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Crimp |
| Contact Finish | 2.54 [0.100] | Fastening Type | Locking Ramp |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Connector Usage | Receptacle | Contact Material | Phosphor Bronze |
| Housing Material | Polymer | Length - Overall | 18.29 mm |
| Mounting Feature | Without | Panel Mount Type | Without |
| Primary Material | InterconnectSystem | Pin Hole Diameter | 0.1" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 7 |
| Contact Termination | Crimp | Number of Positions | 7 |
Product Info
| Note | Not interchangeable with CST-100 contacts and housings.; Mates with all MTA-100 | Type | Housing |
| Gender | RCP | Series | CST-100 II |
| Manufacturer | AMP | Product Type | CST-100 II Housings |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
641211-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS STR .100 30GOLD Headers & Wire Housings 07P MTA100 HDR ASSY PL STR 30A 07P MTA100 HDR ASY PL STR 30A 07P MTA100 HDR ASY PL STR 30A Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641215-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 30AU Headers & Wire Housings FRICTION LCK HDR 7P Straight Post gold Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 7POS, 2.54MM TE Connectivity MTA-100 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 07P MTA100 HDR ASSY FL/ST 30AU
3-644694-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .100 TIN Headers & Wire Housings 7P R/A HDR RETENTIVE Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector7 PositionsConnector Type = Header - PinMTA-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 07P MTA100 R/A HDR RETENTIVE
640454-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings POLARIZED HEADER 7P Straight Post tin MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 TIN Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 7Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, VERTI. PCB HEADER, 7 PIN HEADERASSEMBLY,MTA-100,POLARIZED,7POSITION,STRAIGHT 07P MTA100 HDR ASSY SQ STR POL
644875-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 7POS R/A .100 TIN Headers & Wire Housings 07P MTA100 HDR ASSY F/L SP BND 07P MTA100 HDR ASSY F/L,SP BND 07P MTA100 HDR ASSY F/L,SP BND Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640453-7
te connectivity / amp
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 7POS .100 TIN Headers & Wire Housings FLAT HEADER 7P Right Angle Post tin Header;MTA-100;7;250VAC;Polyester;Tin;CopperAlloy;0.100in.;Tin;AMP 07P MTA100 HDR ASSY SQ R/A
640456-7
te connectivity / amp
Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 7POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 7 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 7P Straight Post tin Conn Wire to Board HDR 7 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 Connectors7 PositionMating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 7WAY Header,FrictionLock;MTA-100;7;250VAC;Polyester;Tin;CopperAlloy;Tin Connector: wire-board; MTA-100; socket; male; PIN:7; tinned; 2.54mm Pin header 7P, 640456-7, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 7路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 07P MTA100 HDR ASSY F/L SQ STR

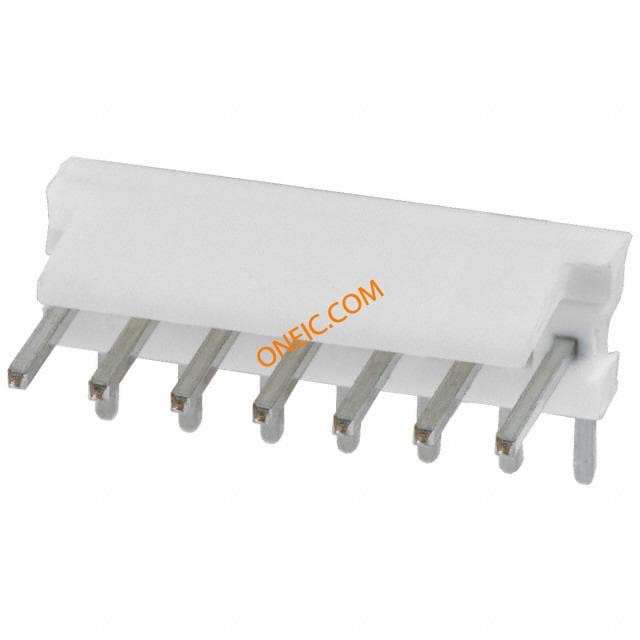

640457-7
