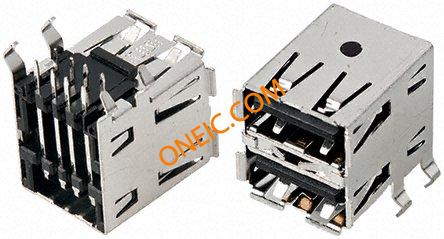

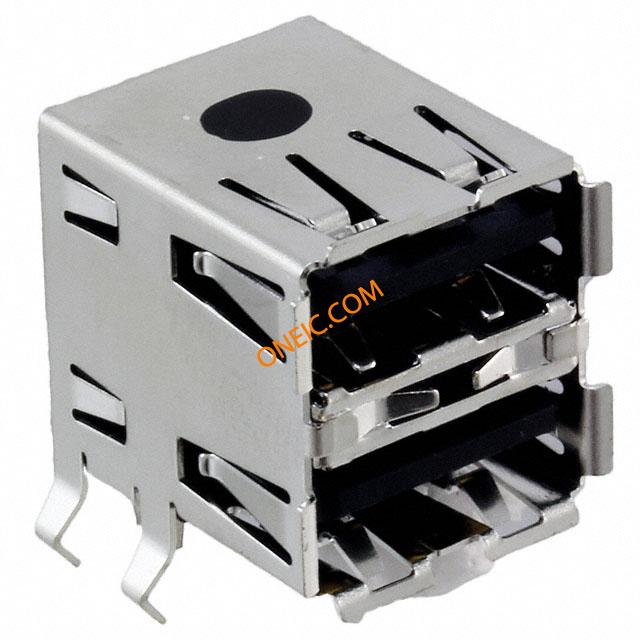

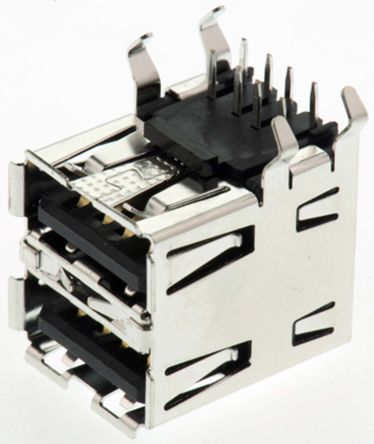

1903815-1
| Manufacturer | |
| Description | Conn USB Type A RCP 8 POS 2.5mm Solder RA Thru-Hole 8 Terminal 2 Port Tray USB Connectors STD 2.0 IND USB A 4P R/A RCPT 2 ROW CONN INDUST USB RCPT R/A 2PORTS Connector, Rec, USB, R/A 2 Row INDUSTRIAL USB REC ASSY R/A 2ROW INDUSTRIAL USB REC ASSY R/A 2ROW Search Keywords:plug and play, hot pluggable, USB 1.0, USB 2.0, USB 3.0, data bus, Universal Serial Bus, IEEE 1394 Serial Bus, box to box, USB, micro, locking, lock, A-RJ45, A-RCA Jack, micro usb, mini usb USB TYPE A, RECEPTACLE, IND, DUAL USB TYPE A CONNECTOR, RCPT, 8POS, THRU HOLE RA Conn;Data;USB;Recept;2.0;4Pos;2Port;RtAngle;ASer;Gold/Nickel TE Connectivity 2 端口 A 型 USB 2.0 直角 插座, 通孔 |
| Category |
商业参数
| 产品 | USB Type A Connectors | 标准包装规格 | 70 |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 间距 | 2.5 mm | 重量 | 0.05 |
| 包装方式 | Tray | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 行程角度 | Right | 连接器类型 | USB - A, Stacked |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 触头材料 | Copper Alloy | 主要材料 | USB |
| 端接样式 | PCB | 触点数 | 8 |
| 接触件端接 | :Through Hole Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| USB | 2.0 | 工作模式 | Multi |
| 类型 | USB Type A | 连接器性别 | RCP |
| 系列 | :Industrial | 产品特性 | Board Lock |
| 制造商全称 | USB,TypeA | 规格说明 | USB 2.0 |
| 端口数 | 2 | ||
环境参数
| 防护等级 | IP20 | ||
