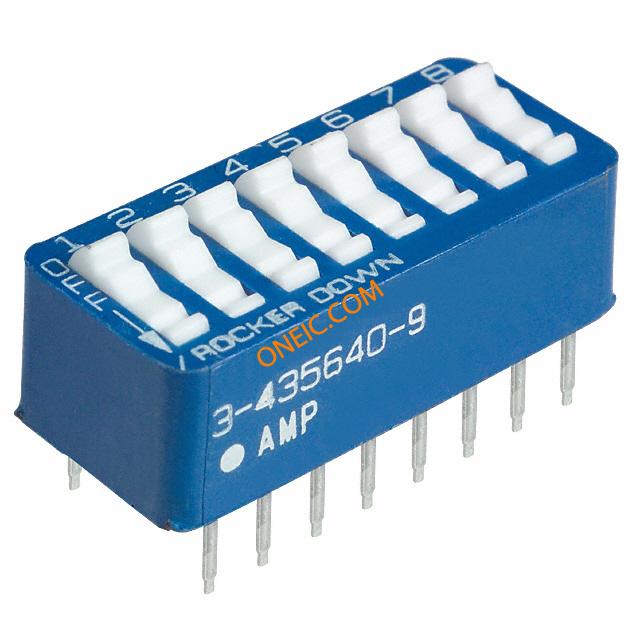

3-5435640-9
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | DIP Switches / SIP Switches | Standard Package | Bulk |
| Factory Pack Quantity | 14 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
Electrical
| Circuit | SPST | Operation | OnOff |
| Voltage Rating | 5VDC | Switch Function | OFF ON |
| Voltage - Rated DC | 40 | Current Rating (Max) | 60mA |
| Switch Function/Rating | OFF ON | Contact Rating (Current) | 0.1 A @ 5 V dc |
| Contact Rating @ Voltage | 0.06A @ 5VDC | Center / Cutoff Frequency | 2.54 mm [ .1 in ] |
Mechanical
| Seal | Strippable Transpar | Depth | 9.65 mm |
| Pitch | 2.54 mm | Height | 8.64 mm |
| Length | 22.3 mm [ .88 in ] | Sealed | Yes |
| Packaging | Tube | Body Color | 蓝色 |
| Orientation | Top Actuated | Termination | PCBPins |
| Contact Form | SPST | Pitch - Post | 2.54 mm |
| Actuator Type | Rocker | Housing Color | Blue |
| Mounting Type | Through Hole | Terminal Type | PC Pins |
| Actuator Level | Raised | Contact Finish | Gold (30) over Nickel (50) |
| Mounting Style | Thru Hole | Package / Case | DIP |
| Insert Material | 铜合金 | Insertion Angle | No |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Length - Overall | 2.54 [0.100] | Package Quantity | 14 |
| Termination Style | Through Hole | Actuator Style/Size | Raised Rocker |
| Number of Positions | 8 | Mounting Hole Diameter | 0.035In. |
| Switch Actuation Level | SPST | Contact Layout, Typical | SPST |
| Termination Post Length | 3.56 [0.140] | Contact Finish Thickness | 30 |
| Actuator Height off PCB, Vertical | Raised | ||
Product Info
| Note | All switches are bottom sealed. | Type | DIP |
| Series | 7100 | Washable | Yes |
| Switch Type | DIP | Circuit Type | SPST |
| Manufacturer | Alcoswitch | Product Type | DIP Switch |
| Card Standard | DIP Switch | Configuration | Single Pole - Single Throw |
| Number of Switches | 8 | Number of Positions (Convert From) | 8 |
Environmental
| Seal Rating | Standard | Mechanical Life | 2000Operations |
| Ingress Protection | 标准 | Operating Temperature | -55 to 105 °C |
