点击放大查看

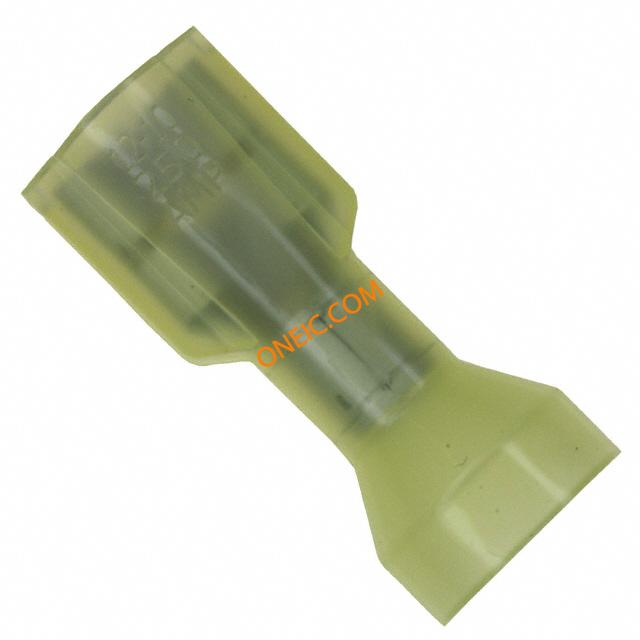

4-520447-2
| Manufacturer | |
| Description | Quick Disconnect Terminal 10-12AWG F 23.74mm 10.38mm Tin Strip on Reel Terminals .25 ULTRA-FAST REC Ultra-Fast Receptacles & Tabs CONN RECEPT FAST 10-12 AWG .250 Receptacle terminal, Ultra-Fast 250 Quick Disconnect Terminal 10-12AWG F 23.74mm 10.38mm Tin Strip on Reel Product Highlights:ReceptacleProprietary Name = Ultra-FastReceptacle Style = StraightTab Fit = 6.35 x 0.81 mmBrass MaterialSearch Keywords:Ultra-Fast, Ultra-Fast Plus, FASTON, terminal, one piece, fully insulated, receptacle, tab, wire crimp, flag, .187, .250, color coded by wire size, 26-10 AWG TERMINAL FEMALE DISCONNECT 6.35MM YELLOW CONNECTOR,RECEPTACLE,ULTRAFASTPLUS250,12-10AWG TE Connectivity Ultra-Fast .250 系列 黄色 绝缘 压接插座 , 6.35 x 0.81mm, 镀锡触芯 ULTRA-FAST 250 ASY REC 12-10 AWG TPBR |
| Category |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27831CT |
| 零件号别名 | 52935 | 产品类别 | Terminals |
| 标准包装数量 | 1,500 | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Yellow | 深度 | 10.38 mm |
| 表面处理 | Tin | 长度 | 0.935in |
| 重量 | 0.002 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 6.35 x 0.81 [.250 x .032] |
| 绝缘类型 | Insulated | 导线线规 | 12-10 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | Quick Disconnect Terminal | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Brass | 绝缘颜色 | :Yellow |
| 总长度 | 0.935" (23.75mm) | 包装数量 | Strip |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 绝缘直径 | 8.13 [.320] Max. | 绝缘材料 - 类型 | Nylon |
| 绝缘材料 - 材质 | Yes | 线规或范围 - AWG | :12AWG |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 250 | 应用 | Standard |
| 产品子类型 | Receptacle | 专有名称 | Ultra-Fast |
