点击放大查看

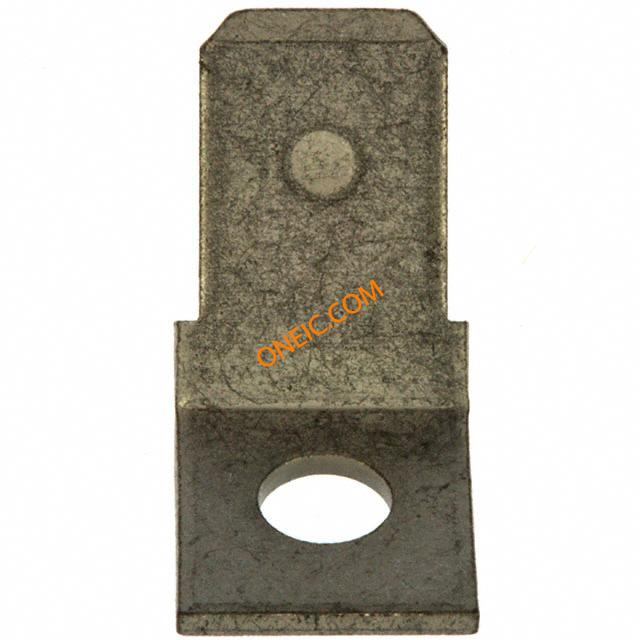

42822-2
| Manufacturer | |
| Description | Quick Disconnect Terminal M 10.2mm 7.49mm Tin Loose Piece Terminals .250 FAST TAB TPBR Quick Disconnect Tabs, Tab Adapters & Tab Caps CONN TAB FASTON .250 TIN PL BR Tab terminal, stud mount,FASTON 250, 45° Quick Disconnect Terminal M 10.2mm 7.49mm Tin Loose Piece Product Highlights:TabTab Type = Stud MountConnection Type = SingleTab Fit = 6.35 x 0.81 mmStainless Steel MaterialSearch Keywords:Terminals and Splices, Lighting Interconnection Products, sealed, TERMINAL, MALE DISCONNECT, 6.35MM, SCREW TERMINAL, TAB, QUICK DISCONNECT FASTONTABSLP,.250FASTTABTPBR TE Connectivity FASTON .250 系列 45° 螺栓安装插片接线端子, 6.35 x 0.81mm, 镀锡触芯 FASTON .250 SERIES (6.3 MM) TAB TPBR |
| Category |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| UL列名 | Recognized | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
机械参数
| 颜色 | Blue | 深度 | 7.49 mm |
| 表面处理 | Tin | 重量 | 0.002 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 绝缘类型 | Not Insulated |
| 插片长度 | :0.25" x 0.032" | 导线线规 | 6 |
| 端接方式 | Screw, Rivet, Stud | 基体材料 | Steel |
| 安装类型 | 45° | 螺柱/焊片尺寸 | 0.25 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Angled - 45° |
| 连接器类型 | :Male Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | 10.2mm |
| 刀片材料 | :Brass | 包装数量 | Loose Piece |
| 绝缘高度 | Without | 端接样式 | Quick Disconnect, Terminals |
| 接触件端接 | Without | 绝缘材料 - 材质 | :Uninsulated |
| 安装孔直径 | With | ||
产品信息
| 备注 | Dimple (both sides). | 类型 | Quick Disconnect Ter |
| 连接器性别 | Female | 系列 | 250 |
| 产品子类型 | Tab | 连接类型 | Single |
| 其他规格 | Stud Mount | ||
