5-1634514-1
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 75 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Voltage - Working | :500V | Contact Resistance | :1.5mohm |
| Voltage - Breakdown | :1500V | Insulation Resistance | :5000Mohm |
Mechanical
| Size | Standard | Depth | 11.8 mm |
| Weight | 0.01 | Diameter | 11.8 mm |
| Packaging | Bulk | Cable Type | RG-59B, RG-62A, RG-140, RG-210, KX25, KX52, KX53, KX6A, URM90 |
| Body Finish | Nickel | Cable Group | RG-59B, 62A, 140, 210 |
| Orientation | Straight | Termination | Crimp |
| Body Material | Zinc Alloy | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold Over Nickel Over Copper | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Cable |
| Plating - Body | Nickel Over Copper | Connector Style | BNC |
| Contact Material | Phosphor Bronze | Length - Overall | 28 mm |
| Package Quantity | 1 | Primary Material | BNC |
| Connector - Cable | plug | Termination Style | Crimp |
| Shield Termination | Crimp | Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) | Insulation Material | Polymethylpentene |
| Material - Insulation | polymethylpentene (PMP) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Straight |
| Contact Material - Plating | gold plated | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 1 | Type | ZDC/BNC |
| Gender | F | Series | :- |
| Polarity | Normal | Connection Type | Coaxial Cable |
| Number of Units | 1 | RF Family/Standard | 1634514 |
Environmental
| Mating Cycles | :50 | Operating Temperature | -55°C ~ 85°C |
Documents & Media
PDF Document
Online Document
Similar Parts
5-1634504-2
te connectivity / amp
$23.2050
Details
1-1634508-0
te connectivity / amp
$9.0600
Details
5-1634556-0
te connectivity / amp
$13.2090
Details

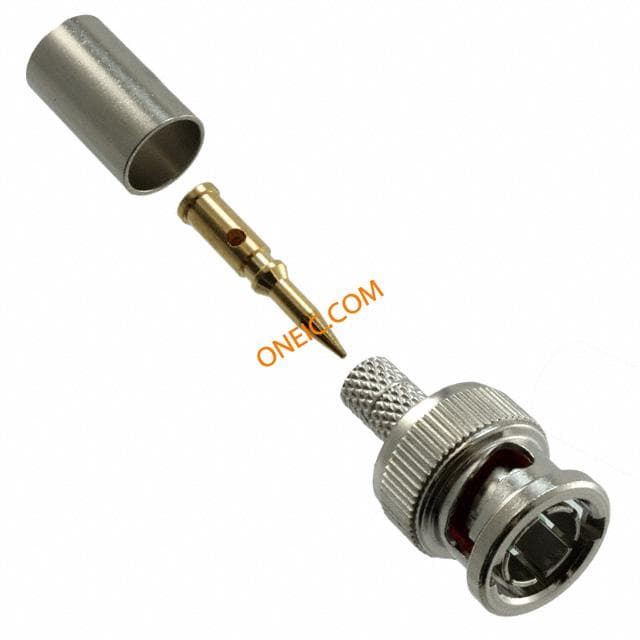

5-1634502-2
te connectivity / amp
$5.5080
Details

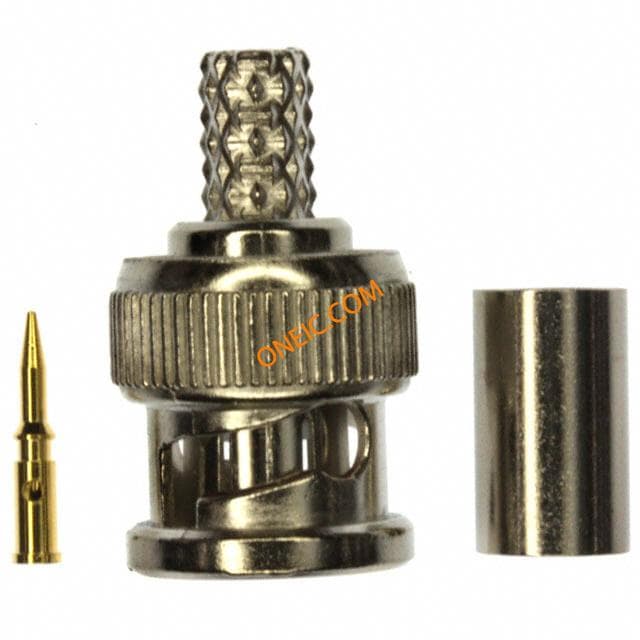

5-1634502-3
