5-1634556-0
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PCB Receptacles | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Frequency - Max | 4GHz | Voltage - Working | :500V |
| Contact Resistance | :1.5mohm | Voltage - Breakdown | :1500V |
| Insulation Resistance | :5000Mohm | Impedance - Unbalanced/Balanced | :50R |
Mechanical
| Size | Standard | Depth | 14.9 mm |
| Height | 11.65 mm | Weight | 0.01 |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Nickel | Orientation | Right Angle |
| Termination | Solder | Body Material | Zinc Alloy |
| Mounting Type | Through Hole | Angle of Throw | RightAngle |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel |
| Mounting Style | Through Hole | Plating - Body | Nickel |
| Connector Style | BNC | Contact Material | Phosphor Bronze |
| Length - Overall | 28 mm | Package Quantity | 1 |
| Primary Material | BNC | Connector - Cable | socket |
| Termination Style | Solder | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polymethylpentene (PMP) |
| Material - Insulation | :Zinc | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Bulkhead |
| Contact Material - Plating | gold plated | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 1 | Type | BNC |
| Gender | RCP | Series | :- |
| Polarity | Normal | Connection Type | PCB |
| Number of Units | 1 | RF Family/Standard | 1634556 |
Environmental
| Mating Cycles | :50 | Operating Temperature | - 55 C to + 85 C |
Documents & Media
Online Document
PDF Document
Similar Parts
330620
TE Connectivity AMP Connectors
$2.7948
Details
9-227260-0
te connectivity / amp
$0.6834
Details

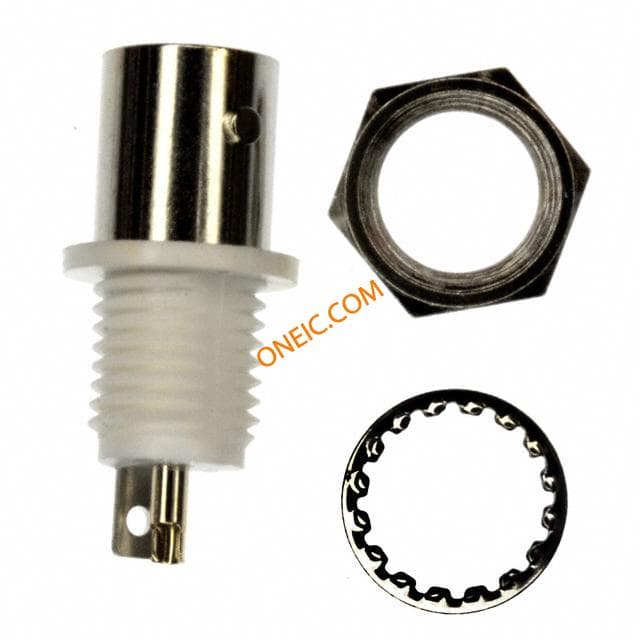

5-1634504-2
te connectivity / amp
$23.2050
Details

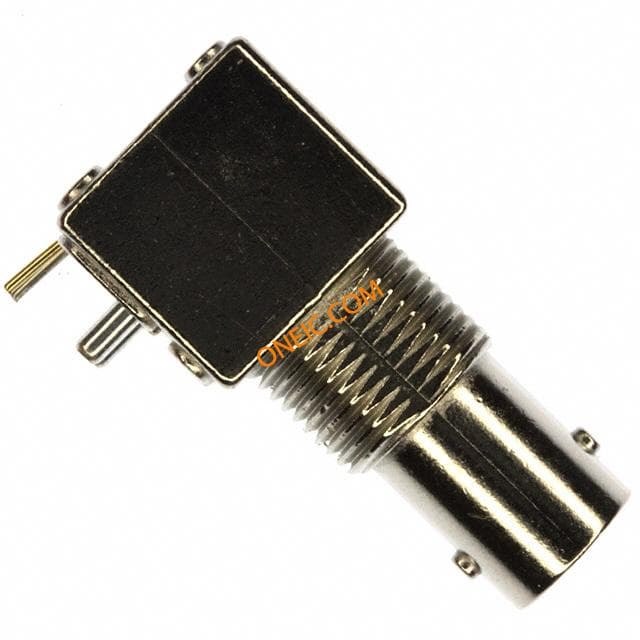

1-1634508-0
te connectivity / amp
$9.0600
Details

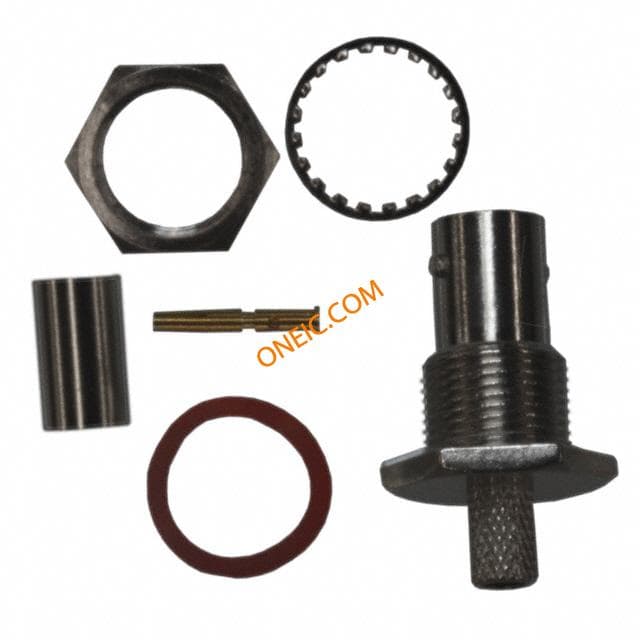

5-1634516-5
te connectivity / amp
$24.4800
Details

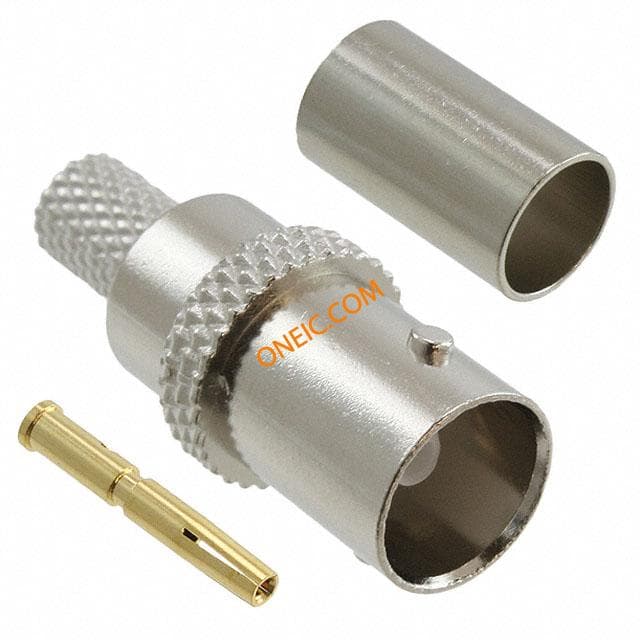

5-1634514-1
te connectivity / amp
$10.3360
Details
1-1634816-0
te connectivity / amp
$2.5160
Details
1-1634817-0
te connectivity / amp
$32.9324
Details

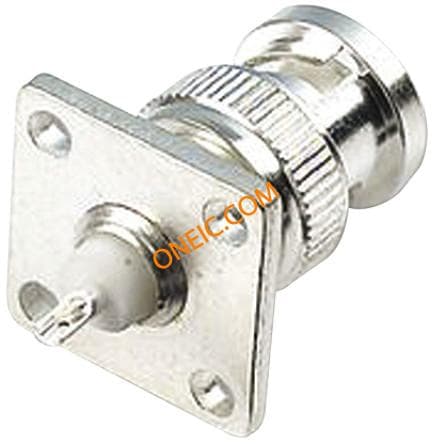

1-1337488-0
te connectivity / amp
$25.3640
Details
CP2399-000
TE Connectivity
$25.4451
Details

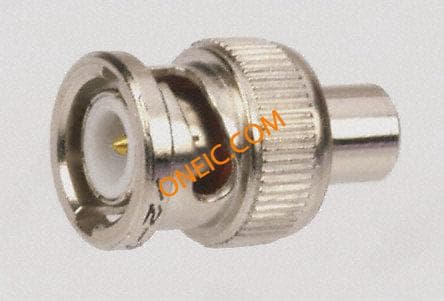

B1004A1-ND3G-50R-0.01-1W
