5-747908-2
| Manufacturer | |
| Description | Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P PLUG TIN Standard Cable Connectors CONN DSUB PLUG 15 POS SLD CUP AMPLIMITE HD-20 d-sub cable plug,15 pin Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, SOLDER, 15WAY Conn;D-Sub;CablePlug;15Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:15; male; soldering; for cable; gold flash D-Sub plug 15P, 5-747908-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB15 15 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 15 Plug Solder Cup, Gold Flash |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | Insert,UL94V-0 | Tariff No | 85369010 |
| Rad Hardened | No | Leadfree Defin | Wave solder capable to 240°C |
| Approval Agency | ULRecognized,ULListedandCSACertified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite HDE-20 Series | Voltage Rating | 250V |
| Voltage - Working | :250V | Current Rating (Max) | 3A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 15.45mm |
| Pitch | 2.77 mm | Width | 12.5mm |
| Height | 12.5 mm | Length | 39.2mm |
| Weight | 0.006 | Material | :Steel |
| Packaging | Tray | Shell Size | 1 |
| Wire Gauge | 20 | Termination | Solder Cup |
| Contact Size | 20 | Contact Type | Solder Cup |
| 2nd Connector | With | Mounting Type | Panel Mount |
| Shell Plating | Tin | Angle of Throw | Straight |
| Connector Type | Solder | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Housing Finish | Tin |
| Mounting Style | Wire | Number of Rows | 2 |
| Plating - Body | :Tin | Shell Material | Steel |
| Connector Style | D-Sub | Insert Material | Thermoplastic |
| Locking Feature | Mounting Holes | Material - Body | :Metal |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 39.2 mm | Package Quantity | 1 |
| Primary Material | D-Subminiature | Size / Dimension | 39.2 x 12.5 x 15.45mm |
| Connector - Cable | plug | Grounding Indents | Without |
| Termination Style | Solder | 1st Contact Gender | PIN |
| Number of Contacts | 15 | Contact Termination | :Solder |
| Number of Positions | 15 | Shell Size - Insert | Steel |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 8µin (0.20µm) |
| Wire Gauge or Range - mm2 | 0.5 - 0.6 [20] | Contact Material - Plating | gold flash |
| Material - Housing & Prism | :Tin Plated | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Spg | 1 | Type | D-Subminiature |
| Grade | Standard | Gender | PIN |
| Series | 747 | Features | Grounding Indents |
| Manufacturer | HD-20 | Product Type | Connector |
| Adapter Series | HD 20 | Number of Ports | 1 |
| Number of Units | 1 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
2-106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET 15P.HDP20 REC.ASSY.
745185-1
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P PCB RECEPTACLE 351 Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:15 PositionsWith ContactsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FullMetalShell 15 RCPT SP/MS STD
1-745493-5
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RECPT 15P 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC socket,15 way Conn D-Subminiature SKT 15 POS 2.74mm IDT ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 15ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;15Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell HDE20 Series 15 Position Socket Discrete Wire IDC D-Sub Connector 15 HDE MS RCPT,22-26,LEAD FREE
5205736-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 RCPT SP/MS STD Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/MS STD
1-106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RECPT R/A BOARDLOCK MET Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, 40-40UNC, 15WAY TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15P.HDP20 REC.ASSY.
106506-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RCPT R/A BRDLOCK Standard Board Mount Connectors CONN RCPT 15PS R/A BOARDLOCK MET 15P.HDP20 REC.ASSY.
5745113-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA545 Standard Board Mount Connectors CONN DSUB RCPT 15POS T/H RA GOLD Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT RA/MS STD
747140-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors HD-20 15P SOCKET 520 Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 25 Terminal 1 Port Product Highlights:15 PositionsConnector Style = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT ACT PIN/MS MED STD
5747845-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS 30GOLD AMPLIMITE HD-20 dsub PCB socket,15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, 15WAY Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell D-Sub female 15P, 5747845-4, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 MSFL RCPT RA 318 (IN,FM,BL)
5745439-2
TE Connectivity / AMP
D-Sub Standard Connectors RCPT R/A 15P AU PCB Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS AU PCB Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5747299-2
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 standard mntg holes Standard Board Mount Connectors CONN D-SUB RCPT STR 15POS PCB AU AMPLIMITEHD20 PCB Receptacle Straight15P Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;STR;HD-20Series;20AWG;FrontMetalShell 15 RCPT SP/FMS STD
5745185-7
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15P RCPT SP/MS STD Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/MS STD
5745782-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 15 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS 30GOLD AMPLIMITE HD-20 d-sub PCB socket, 15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 7.06mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 MSFL RCPT RA 318 (IN,FM)
5747837-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA590 Standard Board Mount Connectors CONN D-SUB RCPT 15POS R/A GOLD Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 15 MSFL RCPT RA 590 (IN,FM,BL)
5747813-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.77mm Solder RA Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors DSUB A15S RA590 Standard Board Mount Connectors CONN D-SUB RCPT R/A 15POS AU 15 MSFL RCPT RA 590L(IN,FM,BL) 15 MSFL RCPT RA 590L(IN,FM,BL) Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5788798-1
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Tray D-Sub Standard Connectors DSUB A15S RA318 Standard Board Mount Connectors CONN D-SUB RCPT 15POS R/A GOLD AMPLIMITE HD-20 d-sub PCB socket, 15 way Conn D-Subminiature SKT 15 POS 2.74mm Solder RA Thru-Hole 15 Terminal 1 Port Tray Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 15POS, RCPT, RT ANGLE Conn;D-Sub;PCBSocket;15Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 15 HTMSFL ASSY RA 318 (IN,BL)

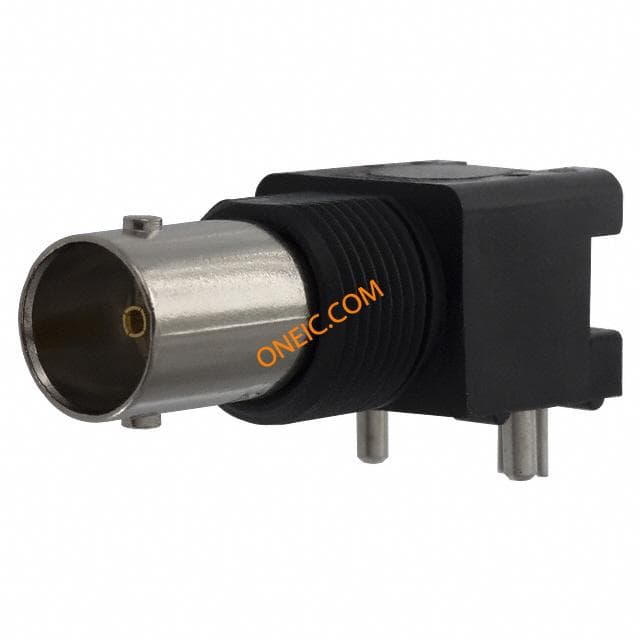

5413194-2
te connectivity / amp
Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC Jack pcb r/a 75ohm RF Connectors / Coaxial Connectors R.A. JACK 75 OHM Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONNECTOR,RF,BNC,JACK,PCB,RIGHTANGLE BNC appliance socket, angled 75 Ohm, 5413194-2, TE Connectivity TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC, RT ANG, PCB, JACK
5747299-4
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors 15 RCPT SP/FMS STD Standard Board Mount Connectors CONN D-SUB RCPT VERT 15POS Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port Product Highlights:Number of Positions = 15ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 15 RCPT SP/FMS STD
745185-7
te connectivity / amp
Conn D-Subminiature SKT 15 POS 2.74mm Solder ST Thru-Hole 15 Terminal 1 Port D-Sub Standard Connectors HD-20 15P SOCKET 351 Standard Board Mount Connectors CONN D-SUB RCPT 15POS VERT T/H 15 RCPT SP/MS STD

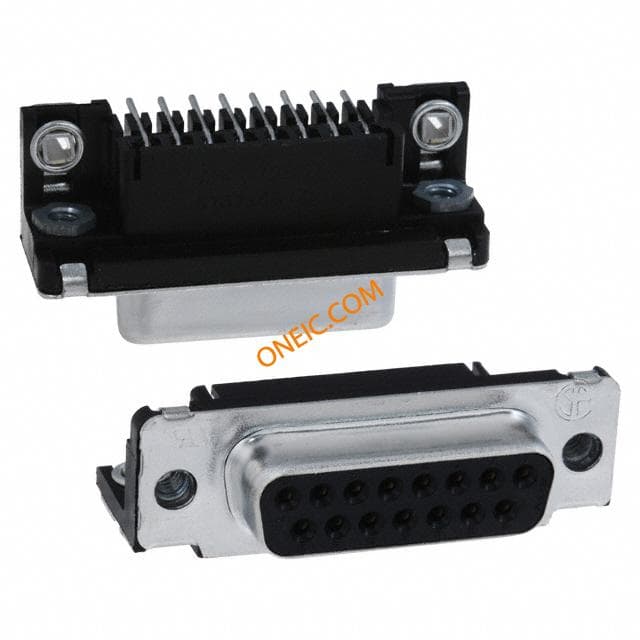

2-42936-9893
