5413194-2
| Manufacturer | |
| Description | Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold BNC RF Connectors CONN BNC JACK R/A 75 OHM PCB BNC Jack pcb r/a 75ohm RF Connectors / Coaxial Connectors R.A. JACK 75 OHM Conn BNC RCP 75Ohm Solder RA Thru-Hole Gold Product Highlights:ConnectorConnector Type = BNCJackTerminate To Printed Circuit BoardPCB Mount Angle = Right AngleSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 CONNECTOR,RF,BNC,JACK,PCB,RIGHTANGLE BNC appliance socket, angled 75 Ohm, 5413194-2, TE Connectivity TE Connectivity 直角 75Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC, RT ANG, PCB, JACK |
| Category |
Business
| Product | PCB Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Trays | Factory Pack Quantity | 35 |
Compliance
| RoHS | Lead free / RoHS Compliant | Rad Hardened | No |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Approval Agency Marking | No | ||
Electrical
| Frequency | 0 → 4GHz | Impedance | 75 Ohm |
| Isolated Power | No | Voltage Rating | 500 V |
| Frequency - Max | 2GHz | Connector Impedance | Without |
| Impedance (Max) (Zzt) | 75Ω | Insulation Resistance | 5000 MOhms |
Mechanical
| Size | Standard | Color | Black |
| Depth | 14.76 mm | Height | 13.18 mm |
| Sealed | No | Packaging | Bulk |
| Body Color | 黑色 | Body Finish | Nickel |
| Orientation | Right Angle | Termination | Solder |
| Body Material | VALOX | Mounting Type | Through Hole |
| Angle of Throw | RightAngle | Connector Type | BNC |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Standard |
| Plating - Body | 镍 | Connector Style | BNC |
| Height (Inches) | 13.18 [0.519] | Contact Material | Beryllium Copper |
| Length - Overall | 34.93 mm | Mounting Feature | 3.48 mm [ .137 in ] |
| Panel Mount Type | Lockwasher and Nut | Primary Material | BNC |
| Termination Rows | 焊接 | Termination Style | Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polymethylpentene | Insulation Material | Polymethylpentene |
| Number of Positions | 1 | 1st Connector Gender | Female |
| Center Contact Finish | 金 | Center Contact Plating | Gold (30) |
| Length - Post (Mating) | 3.48 [0.137] | Center Contact Material | Beryllium Copper |
| Supplier Device Package | Right Angle | Surface Mount Land Size | No |
| Contact Finish Thickness | 30 | 1st Connector Mounting Type | Panel |
| Outside Pipe Diameter (Max) | 14.529 mm [ .572 in ] | Actuator Height off PCB, Vertical | 13.18 mm [ .519 in ] |
Product Info
| Type | BNC | Grade | Commercial |
| Gender | RCP | Series | BNC |
| Features | Board Guide | Hardware | No |
| Polarity | No | Sealable | 否 |
| Manufacturer | AMP | Product Type | Connector |
| Connection Type | PCB | Number of Ports | 1 |
| RF Family/Standard | 5413194 | ||
Environmental
| Operating Temperature | - 55 C to + 85 C | ||
Documents & Media
Similar Parts
330620
TE Connectivity AMP Connectors
Connector Accessories BNC Insulating Bushing Nylon BNC RF Connectors CONN BUSHING INSULATE BNC BLKHD RF Connector Accessories INSULATION BUSHING Connector Accessories BNC Insulating Bushing Nylon Product Highlights:Insulating BushingConnector Type = BNCNot StackedInsulating Bushing Outside Diameter = 17.45 mmSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 INSULATIONBUSHING,BNC,17.45MMOUTSIDEDIAMETER TE Connectivity BNC系列 天然色 尼龙 绝缘衬套, 适用于射频同轴连接器 INSUL BUSHING BNC BLKHD PHEN
1-329631-2
te connectivity / amp
Connector Accessories Jam Nut BNC Connector Type BNC RF Connectors JAM NUT 0.623" BRASS 1/2-28 Jam nut for BNC connectors Screws & Fasteners HEX JAM NUT 1/2-28 Connector Accessories Jam Nut BNC Connector Type Product Highlights:Jam NutConnector Type = BNCNot StackedNot Surface MountableCartonSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC CONNECTOR LEAD, JAM NUT Connector;JamNut;BNC;RoHS,ELVCompliants Lock nut BNC, 1-329631-2, TE Connectivity TE Connectivity 锁紧螺母, 使用于BNC 连接器 JAM NUT, PLATED
9-227260-0
te connectivity / amp
Lock Washer Terminal 14.55mm Tin Terminals LOCKWASHER TERM LOCKWASHER TERM CONN LOCKWASHER RECEPT BNC LOCKWASHER,TERMINAL,LEADFREE TE Connectivity 227260系列 锁紧垫圈
1-329632-2
te connectivity / amp
Connector Accessories Lock Washer Carton BNC RF Connectors WASHER INT TOOTH PHOSPHOR BRONZE Screws & Fasteners LOCKWASHER Connector Accessories Lock Washer Carton Product Highlights:LockwasherConnector Type = BNCNot Surface MountablePackaging Method = CartonNot PolarizedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 LOCKWASHER Connector;BNC;AMP Spring washer BNC, 1-329632-2, TE Connectivity LOCKWASHER, PLATED
5-747908-2
te connectivity / amp
Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P PLUG TIN Standard Cable Connectors CONN DSUB PLUG 15 POS SLD CUP AMPLIMITE HD-20 d-sub cable plug,15 pin Conn D-Subminiature PIN 15 POS 2.77mm Solder Cup ST Panel Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 15PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, D, SOLDER, 15WAY Conn;D-Sub;CablePlug;15Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:15; male; soldering; for cable; gold flash D-Sub plug 15P, 5-747908-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB15 15 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 15 Plug Solder Cup, Gold Flash

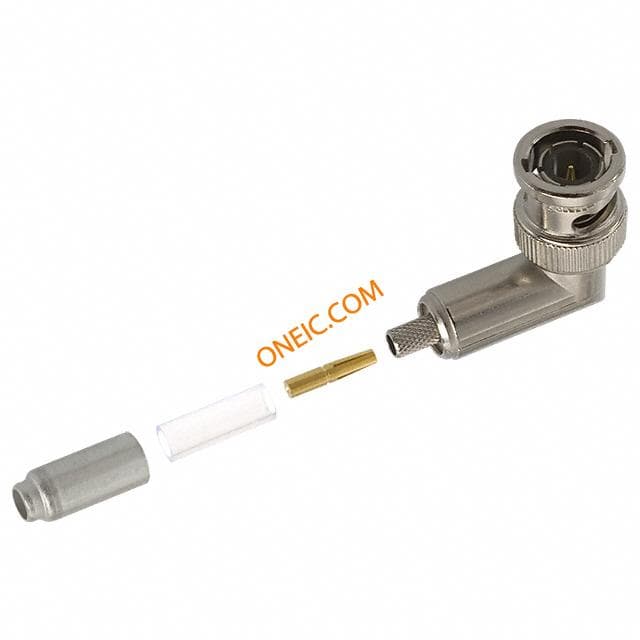

5413959-3
