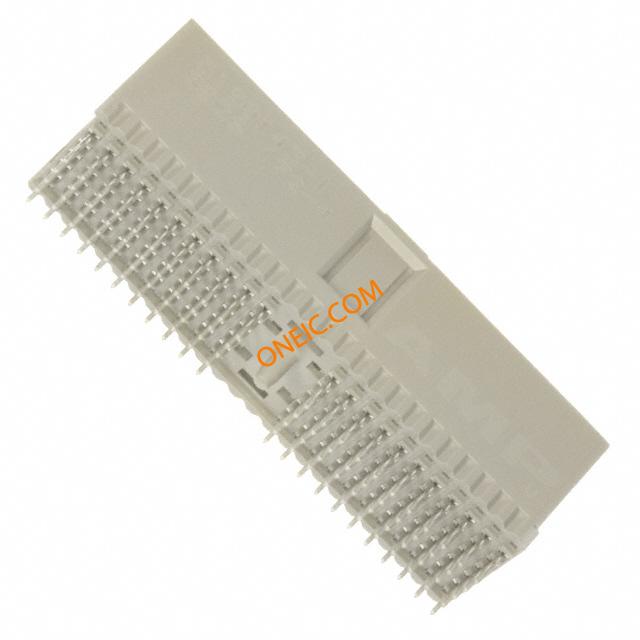

5100143-1
| Manufacturer | |
| Description | Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS VERT 2MM 110 way Z pack hard metric plug Hard Metric Connectors B-PLANE HM HDR A/110P VRT Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, PLUG, PCB, VERT, TYPE A, 5ROW, 110WAY Z-PACK2MMVRPINHDR,2MMH.M.TYPEAPINASSY. TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直向 5 排 公 背板连接器, 按式端子, 1.5A 2MM H.M. TYPE "A" PIN ASSY. |
| Category |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 接触电阻 | 20 mohm |
| 最大额定电流 | 1.5A | 最小供电电压 | 500VAC |
机械参数

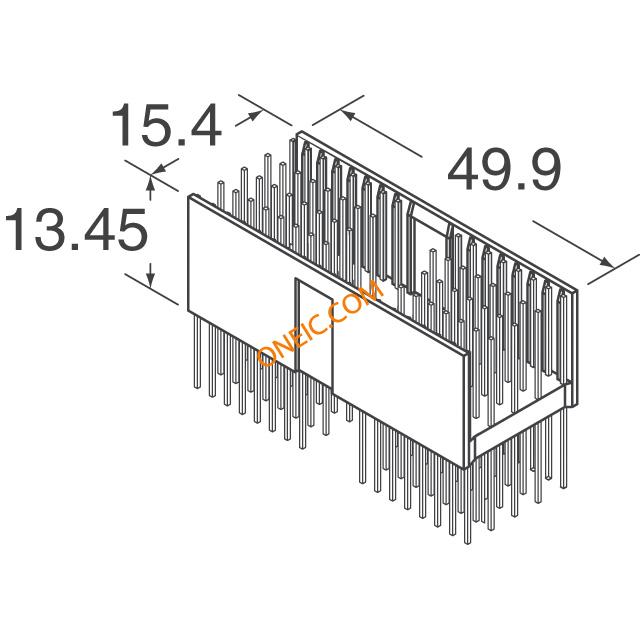

| 深度 | 15.4 mm | 间距 | 2 mm |
| 高度 | 13.45 mm | 重量 | 0.004 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Tube |
| 屏蔽类型 | No | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 引脚间距 | :2mm |
| 柱间距 | :2mm | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type A | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 5 |
| 连接器样式 | A 22 | 连接器用途 | Backplane |
| 触头材料 | Phosphor Bronze | 前部连接器 | Level 1 |
| 壳体材料 | PBT - GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 端接样式 | Press Fit |
| 连接器颜色 | :Grey | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 接触件端接 | :Press Fit Vertical | 位数 | 110 |
| 柱体长度（配合） | 3.71 [0.146] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Hard Metric | 连接器性别 | Plug |
| 系列 | Z-Pack | 产品特性 | Board Guide |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 模块/板类型 | No | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号

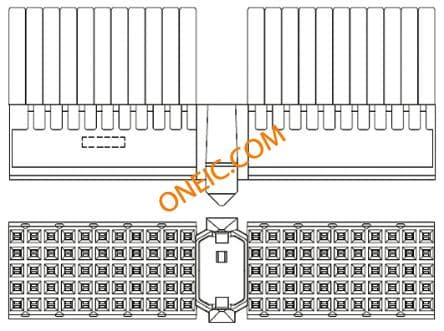

5100623-1
te connectivity / amp
Conn Hard Metric F 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 110 Way 5 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors Z-PACK/A RAF 110P Z-PACK/A RAF 110P Z-PACK/A RAF 110P Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Receptacle110waypcb2mmZ-Pack TE Connectivity Z-PACK HM 系列 5行 110路 直角 2mm节距 通孔 印刷电路板插座, 板对板

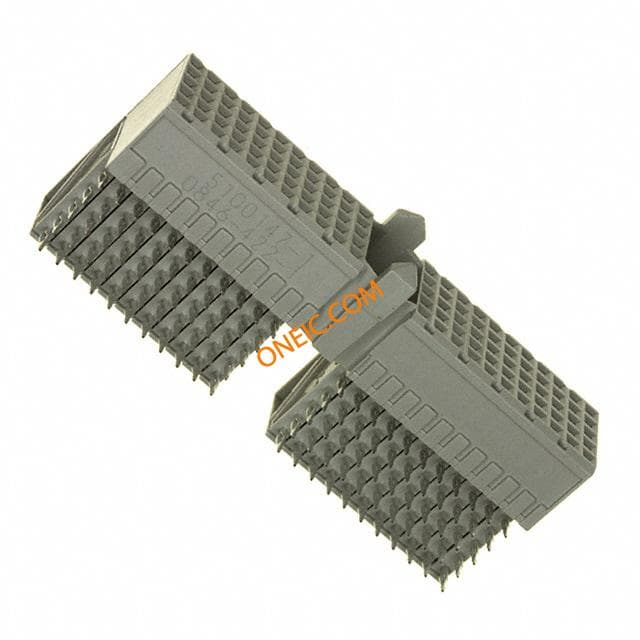

5100147-1
