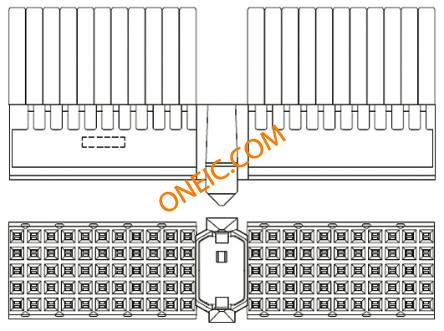

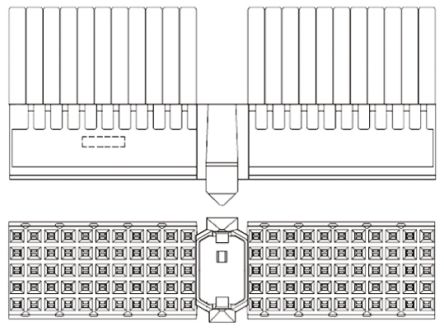

5100623-1
| Manufacturer | |
| Description | Conn Hard Metric F 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 110 Way 5 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors Z-PACK/A RAF 110P Z-PACK/A RAF 110P Z-PACK/A RAF 110P Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Receptacle110waypcb2mmZ-Pack TE Connectivity Z-PACK HM 系列 5行 110路 直角 2mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
商业参数
| 标准包装规格 | 11 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Reduced | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 典型衰减 | 缩减 | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 是 |
| 壳体颜色 | 灰色 | 方向 | 直角 |
| 屏蔽类型 | Ground Return Shielding | 端接方式 | Solder |
| 触头类型 | Short Tail | 固定类型 | 否 |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 外壳镀层 | Gold Flash over Nickel |
| 连接器类型 | Type A | 接触镀层 | Gold Over Nickel |
| 排数 | 5 | 连接器样式 | A 22 |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 屏蔽材料 | Phosphor bronze | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 面板安装类型 | 直角 |
| 端接排数 | 焊接 | 配接方向 | With |
| 触点数 | 110 | 端接表面处理 | Tin over Nickel |
| 位数 | 110 | 柱体长度（配合） | 3.71 [0.146] |
| 典型触点布局 | ACTION PIN, 信号 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 制造商 | 3.7 | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-PACK HM |
| 产品特性 | Upper Shield | 卡类型 | 无 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 控制器系列 | 否 | 模块/板类型 | No |
| 加载位置数 | All | 转换前位置数 | A, B, C, D, E |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
5100143-1
te connectivity / amp
Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 110POS VERT 2MM 110 way Z pack hard metric plug Hard Metric Connectors B-PLANE HM HDR A/110P VRT Conn Hard Metric PL 110 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type APlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, PLUG, PCB, VERT, TYPE A, 5ROW, 110WAY Z-PACK2MMVRPINHDR,2MMH.M.TYPEAPINASSY. TE Connectivity Z-PACK HM 系列 2mm 节距 110 路 直向 5 排 公 背板连接器, 按式端子, 1.5A 2MM H.M. TYPE "A" PIN ASSY.

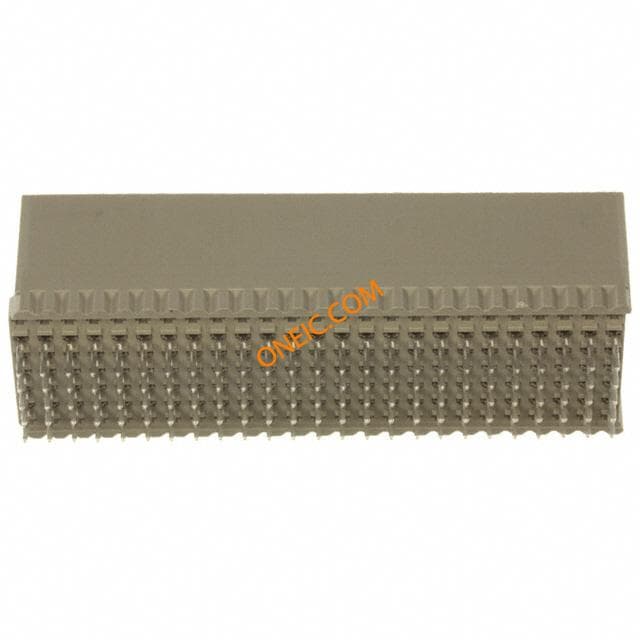

5100141-1
