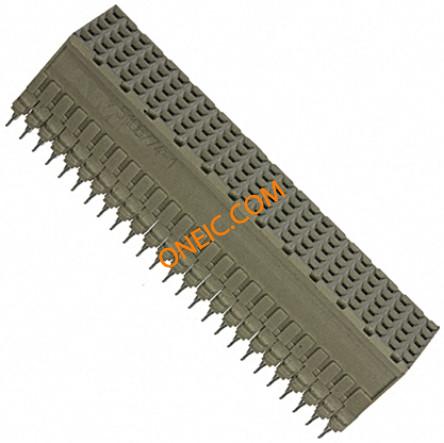

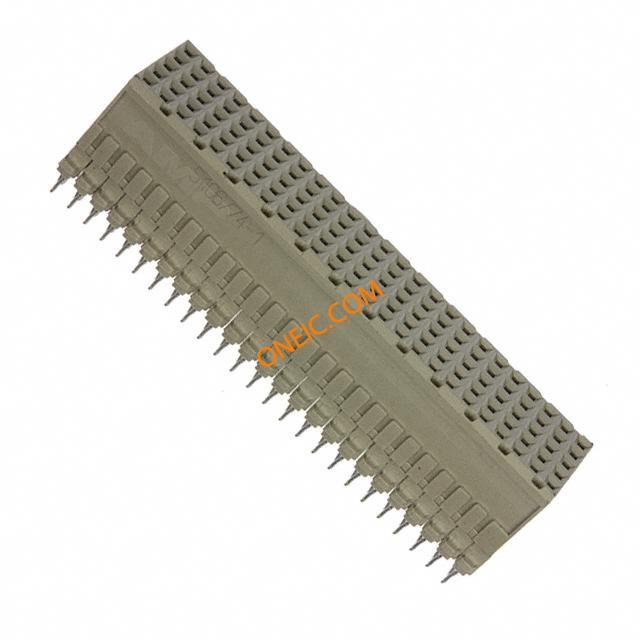

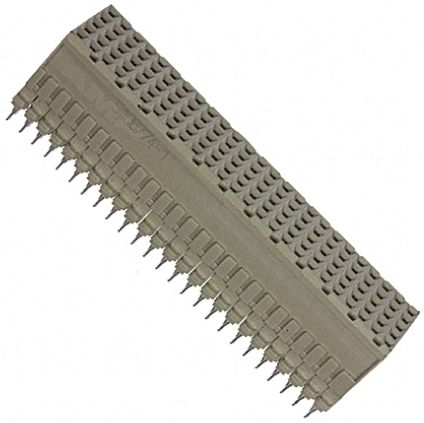

5106774-1
| Manufacturer | |
| Description | Conn Hard Metric F 125 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 125POS VERT 2MM 2mm PCBType A 5x125 Hard Metric Connectors REC B/125P VRT B-PLANE HM Conn Hard Metric F 125 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Type B 125 Position 2 mm Receptacle Press Fit Hard Metric PCB Mount Connector TE Connectivity Z-Pack 系列 2mm 节距 125 路 直向 5 排 母 背板连接器, 按式端子 Z-PACK/B25 VF 125P |
| Category |
商业参数
| 产品类别 | Hard Metric Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 11 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 数据速率（最大） | ≤1 |
| 典型衰减 | 缩短 | 最大额定电流 | 1.5A |
机械参数
| 深度 | 11.4 mm | 间距 | 2 mm |
| 高度 | 12 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 壳体颜色 | 灰色 | 方向 | 直 |
| 屏蔽类型 | No | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 固定类型 | 否 |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type B, 25 Column | 接触镀层 | Gold Over Nickel |
| 安装样式 | Through Hole | 排数 | 5 |
| 连接器样式 | B 25 | 连接器用途 | Backplane |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 面板安装类型 | 垂直 |
| 端接排数 | 按式 | 端接样式 | Pin |
| 配接方向 | Without | 触点数 | 125 |
| 端接表面处理 | Tin over Nickel | 位数 | 125 |
| 柱体长度（配合） | 3.71 [0.146] | 典型触点布局 | ACTION PIN |
| 端子柱长度 | 3.7 | 接触镀层厚度 | 30µin (0.76µm) |
| 后壳材料及镀层 | 硬公制 B 型 | ||
产品信息
| 制造商 | 3.3 | 类型 | Hard Metric |
| 连接器性别 | Receptacle | 系列 | Z-Pack |
| 已删除 | Compliant | 卡类型 | 无 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 控制器系列 | 否 | 模块/板类型 | No |
| 列数 | 25 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号

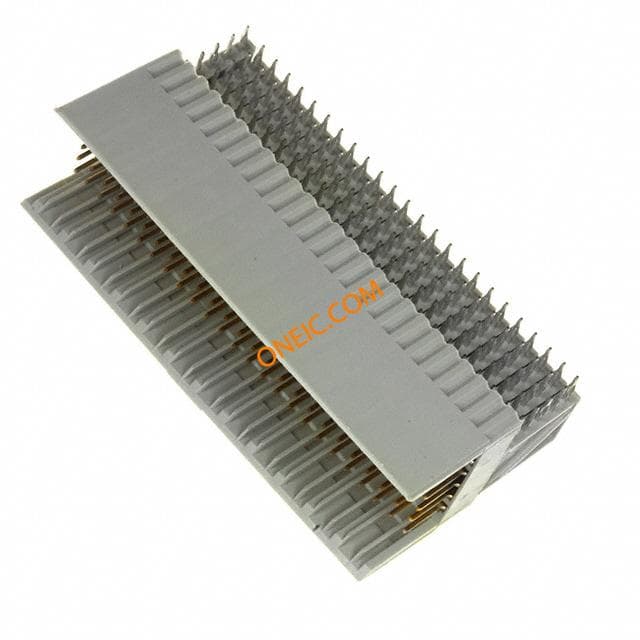

5106014-1
