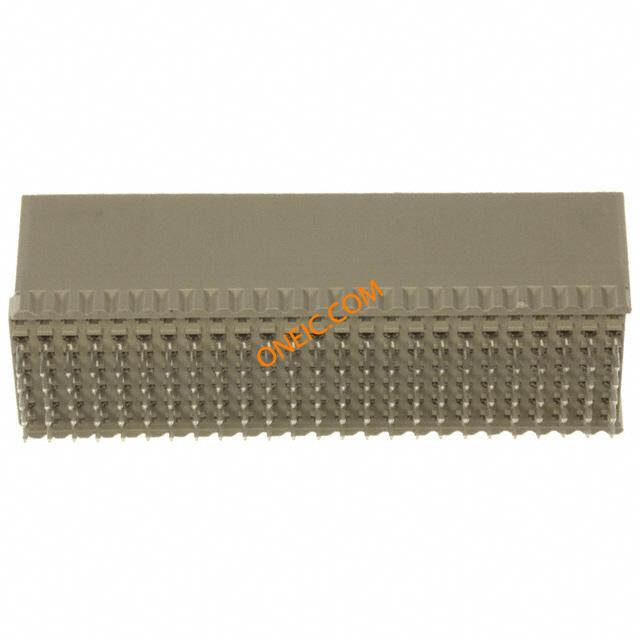

5100141-1

Manufacturer
TE Connectivity Ltd.
Description
Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 125POS VERT 2MM 125 way Z pack hard metric plug Hard Metric Connectors HDR B/125P VRT B-PLANE HM Conn Hard Metric PL 125 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnPlugInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 125wayZpackhardmetricplug 125 Position 2 mm Plug Through Hole Press Fit Hard Metric PCB Mount Connector TE Connectivity Z-PACK HM 系列 2mm 节距 125 路 直向 5 排 公 背板连接器, 按式端子, 1.5A 2MM H.M. TYPE "B" PIN ASSY.
Category
连接器解决方案背板连接器背板连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品类别Hard Metric Connectors标准包装数量Rail / Tube
工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

串扰Standard接口2mm HM
额定电压500V数据速率（最大）≤1
典型衰减标准接触电阻20 mohm
最大额定电流1.5A最小供电电压500VAC

机械参数

深度15.4 mm间距2 mm
高度13.45 mm长度50
包装方式Tube屏蔽否
方向直屏蔽类型No
端接方式Press Fit触头类型Press Fit
固定类型否安装类型Through Hole
连接器类型Type B, 25 Column接触镀层Gold Over Nickel
安装样式Through Hole排数5
连接器样式B 25连接器用途Backplane
插入件材料磷青铜触头材料Phosphor Bronze
壳体材料Polyester GF总长度50.00 [1.968]
包装数量10面板安装类型垂直
主要材料Connector端接排数按式
端接样式Press Fit配接方向Without
触点数125端接表面处理Tin over Nickel
位数125柱体长度（配合）5.20 [0.205]
典型触点布局Signal端子柱长度5.2
接触镀层厚度30µin (0.76µm)后壳材料及镀层硬公制 B 型

产品信息

类型Hard Metric连接器性别Plug
系列Z-Pack卡类型无
制造商全称AMP产品子类型Connector
控制器系列否模块/板类型No
列数25加载位置数All

环境参数

工作温度-55°C ~ 125°C

Documents & Media

Online Document
5100141-1?RQPN=5100141-1

相关型号

5100623-1

5100623-1

te connectivity / amp

Conn Hard Metric F 110 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 110POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 110 Way 5 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors Z-PACK/A RAF 110P Z-PACK/A RAF 110P Z-PACK/A RAF 110P Search Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Receptacle110waypcb2mmZ-Pack TE Connectivity Z-PACK HM 系列 5行 110路 直角 2mm节距 通孔 印刷电路板插座, 板对板

¥77.5200
详情

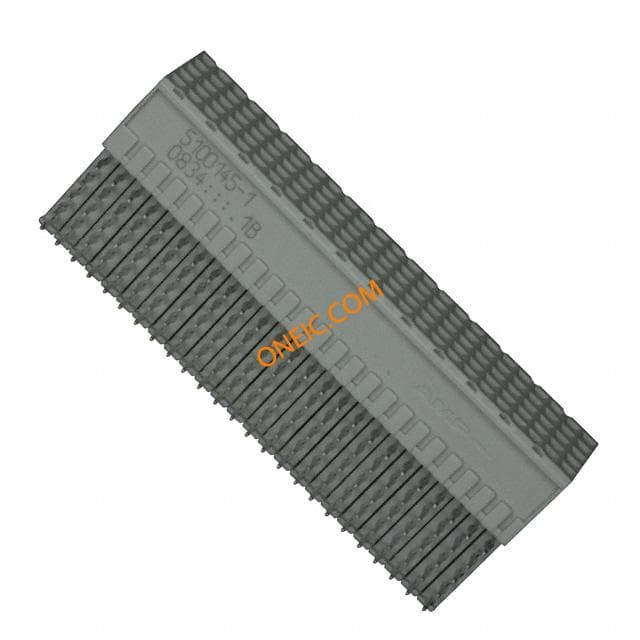

5100145-1

5100145-1

te connectivity / amp

Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 125POS RT ANG 2MM Hard Metric Connectors REC B/125P R/A B-PLANE HM Conn Hard Metric RCP 125 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type B, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Z-PACK/B25 RAF 125P

¥76.4319
详情

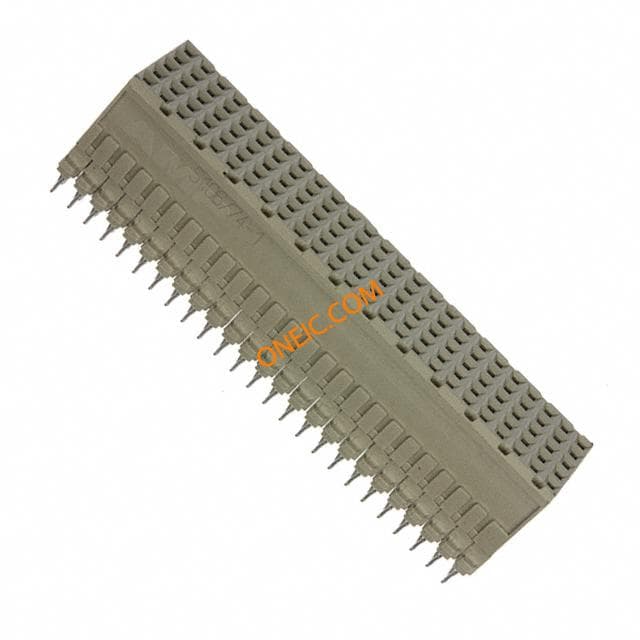

5106774-1
