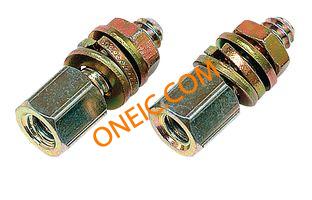

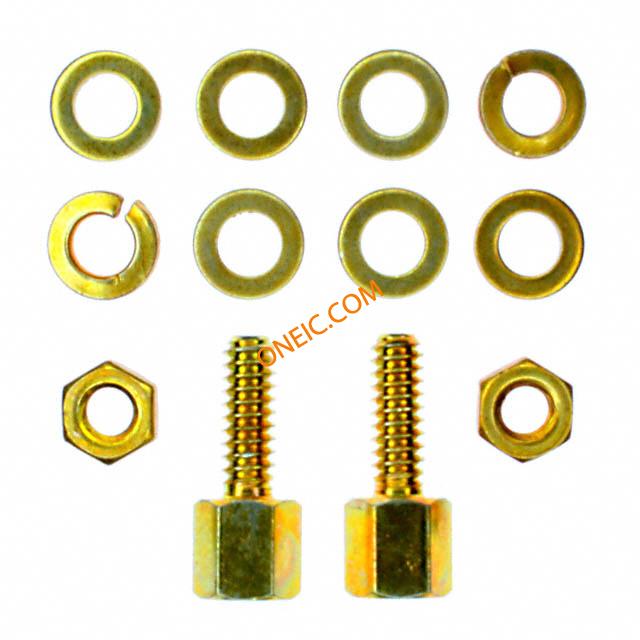

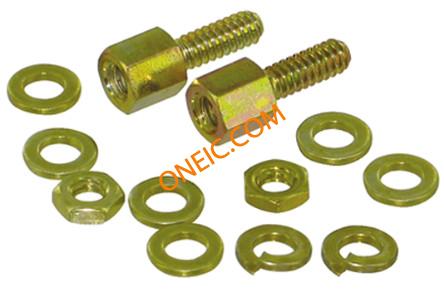

5205817-8
| Manufacturer | |
| Description | Connector Accessories Female Screwlock Kit Steel Individual D-Sub Tools & Hardware FEMALE SCREWLOCK KIT Hardware (AMPLIMITE) CONN D-SUB SCREWLOCK FEMALE KIT, SCREWLOCK, FEMALE, AMPLIMITE, HDE Connector Accessories Female Screwlock Kit Steel Individual Product Highlights:Female Screwlock Assembly KitYellow Chromate Body FinishThread Size = 4-40Thread Length = 7.92 mmScrew Length = 12.70 mmSearch Keywords:Subminiature D, KIT,SCREWLOCK,FEMALE,AMPLIMITE,HDE/HDP,4-40THREADSIZE KIT SCREWLOCK FEMALE |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Hardware | 零件号别名 | M24308 M24308/26-1 |
| 产品类别 | D-Sub Tools & Hardware | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 深度 | 4.74 mm | 表面处理 | YellowChromate |
| 包装方式 | Individual | 螺纹尺寸 | 4-40 UNC |
| 螺钉表面处理 | Yellow Chromate | 安装类型 | 带锁紧垫圈和六角螺母的螺钉锁 |
| 螺纹长度 | 7.92 [0.312] | 连接器类型 | Jackscrew Socket |
| 封装形式 | Kit | 螺丝材料 | Steel |
| 内部长度 | 12.70 [0.500] | 触头材料 | Steel |
| 总长度 | 12.7 mm | 包装数量 | Individual Kit |
| 兼容外壳尺寸（如TM-700等） | 金属外壳或所有塑料连接器（HDP 或 HDF） | 螺钉材料 - 镀层 | Zinc |
| 头部以下螺纹长度 | 0.312" (7.92mm) | ||
产品信息
| 备注 | All parts are packaged unassembled.; Short female screwlocks cannot be used wit | 类型 | Screw Lock |
| 样式 | Screwlock With Lockwasher and Hex Nut | 连接器性别 | Female |
| 系列 | AMPLIMITE HD, AMP | 产品特性 | Hardware Included |
| 套件类型 | D-sub Screw Lock Kit | 主要用途 | Hardware Included |
| 制造商全称 | AMP | 产品子类型 | Female Screwlock Assembly Kit |
| 附件类型 | Jackscrew Socket | 射频系列/标准 | M24308/26-1 |
| 适用产品/相关产品 | Metal Shell or All Plastic Connectors (HDP or HDF) | ||
