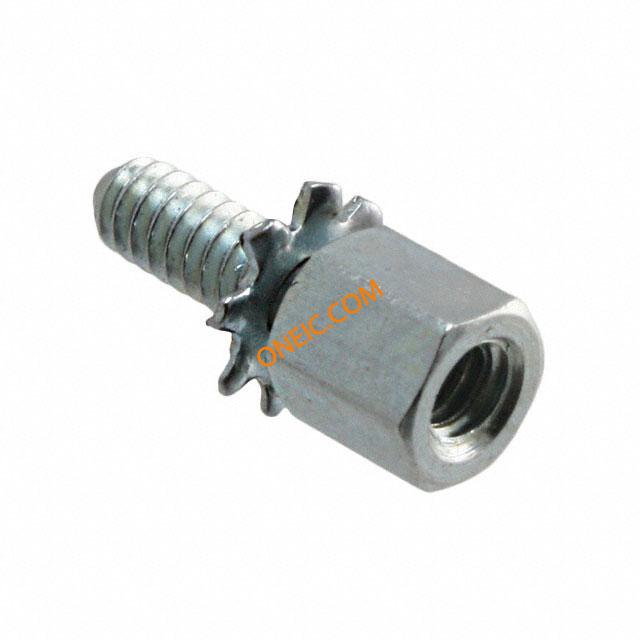

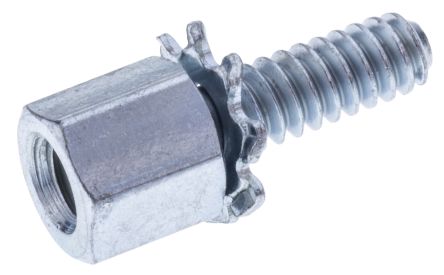

5748558-4
| Manufacturer | |
| Description | Connector Accessories Female Screw Lock Assembly Kit Steel Zinc Clear Chromate Bulk D-Sub Tools & Hardware FEM SCRWLCK (2/BAG) Hardware (AMPLIMITE) CONN D-SUB FEMALE SCREW LOCK Connector Accessories Female Screw Lock Assembly Kit Steel Zinc Clear Chromate Bulk Product Highlights:Accessory Type = Female Screwlock Assembly KitClear Chromate Body FinishThread Size = 4-40Thread Length = 6.52 mmScrew Length = 12.70 mmSearch Keywords:Subminiature D, FEMALE SCREW LOCK KIT, #4-40, 12.7MM TE Connectivity 5748558 系列 4-40 内螺纹锁, 使用于AMPLIMITE 超微型 D 型连接器 FEMALE SCREWLOCK KIT,BULK PKG |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Hardware | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 长度 | 6.52 mm | 重量 | 0.00068 |
| 包装方式 | Bulk | 头部高度 | :6.18mm |
| 螺纹尺寸 | 4-40 | 螺钉表面处理 | Clear Chromate |
| 螺纹长度 | 6.52 [0.257] | 螺丝材料 | Steel |
| 内部长度 | 12.70 [0.500] | 包装数量 | Bulk |
| 螺纹/螺钉/孔尺寸 | :- | 螺钉材料 - 镀层 | Zinc |
| 头部以下螺纹长度 | 0.312" (7.92mm) | ||
产品信息
| 备注 | With captivated star number. No additional hardware included | 类型 | Screw Lock |
| 样式 | Screwlock Only | 连接器性别 | Female |
| 系列 | :AMPLIMITE | 产品特性 | Lock Washer |
| 制造商全称 | AMP | 产品子类型 | Female Screwlock Assembly Kit |
| 附件类型 | Jackscrew Socket | 射频系列/标准 | 5748558 |
| 适用产品/相关产品 | Metal Shell or All Plastic Connectors (HDP or HDF) | ||
