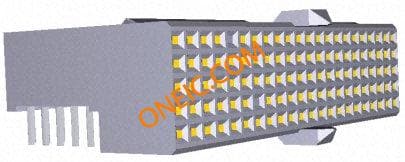

5646534-1
| Manufacturer | |
| Description | Conn Hard Metric M 146 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) 2MM HM,TYPE A/B,HDR,ASY,146POS Hard Metric Connectors 2MM HM,TYPE A/B,HDR ASY,146POS Conn Hard Metric M 146 POS 2mm Press Fit ST Thru-Hole Product Highlights:ConnectorConnector Type = Type A/BPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, HEADER, Z-PACK, 2MM, 146WAY |
| Category |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 2 mm | 重量 | 0.09 |
| 包装方式 | Tube | 屏蔽类型 | No |
| 端接方式 | Press Fit | 触头类型 | Short Tail |
| 柱间距 | :2mm | 外壳颜色 | Gray |
| 安装类型 | Through Hole | 连接器类型 | Type A/B |
| 接触镀层 | Gold Over Nickel | 安装样式 | PCB |
| 排数 | 7 | 连接器样式 | AB 22 |
| 连接器用途 | Backplane | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 总长度 | 43.88 [1.729] |
| 配接方向 | Without | 触点数 | 146 |
| 端接表面处理 | Tin over Nickel | 接触件端接 | :Through Hole Vertical |
| 位数 | 146 | 柱体长度（配合） | 3.71 [0.146] |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 连接器性别 | Plug |
| 系列 | Z-Pack | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | No |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
