646489-1
| Manufacturer | |
| Description | Hard Metric Connectors 2MM A/B 22 RECPT 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS R/A GOLD Recept horiz pcb 110way 5 row Rec Z-Pack Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Conn Hard Metric RCP 110 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type A/BReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, CONNECTOR,RECEPTACLE,2MMHARDMETRIC,TYPEA/B,SIGNAL TE Connectivity Z-Pack 系列 2mm 节距 110 路 直角 5 排 母 硬公制背板连接器, 焊接端子, 1.5A |
| Category |
商业参数
| 标准包装数量 | 180 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 500V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 0.079" (2.00mm) | 包装方式 | Tube |
| 方向 | 直角 | 屏蔽类型 | Yes |
| 端接方式 | Press-Fit | 触头类型 | Feed through |
| 极化 | Multi-Purpose Center | 外壳颜色 | Gray |
| 安装类型 | Right Angle | 连接器类型 | Type A/B |
| 接触镀层 | Gold (30) over Nickel (50) | 排数 | 5 |
| 连接器样式 | AB 22 | 连接器用途 | CompactPCI RJ5 |
| 触头材料 | Phosphor Bronze | 前部连接器 | Level 1 |
| 壳体材料 | Polyester GF | 总长度 | 44.00 [1.732] |
| 主要材料 | HardMetric | 端接排数 | 焊接 |
| 配接方向 | With | 触点数 | 110 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 110 |
| 柱体长度（配合） | 3.30 [0.130] | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Receptacle | 连接器性别 | Receptacle |
| 系列 | Z-PACK | 产品特性 | Upper Shield |
| 成分 | RJ3 | 制造商全称 | AMP |
| 产品子类型 | Connector | 模块/板类型 | Yes |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号

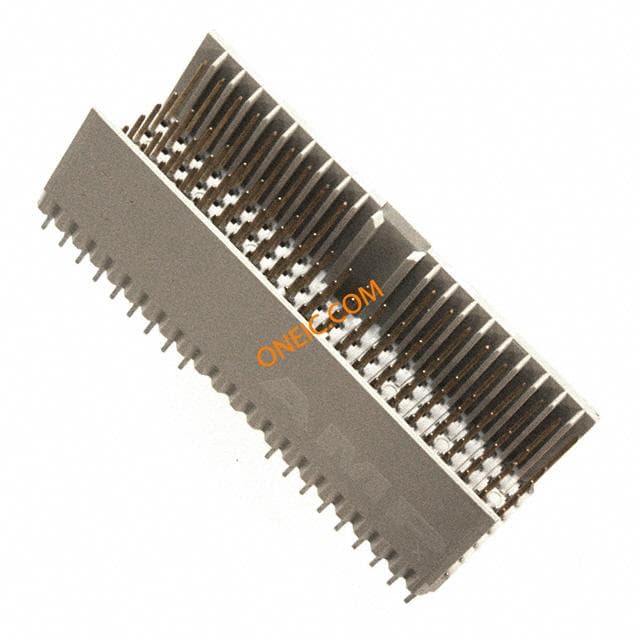

5646533-1
