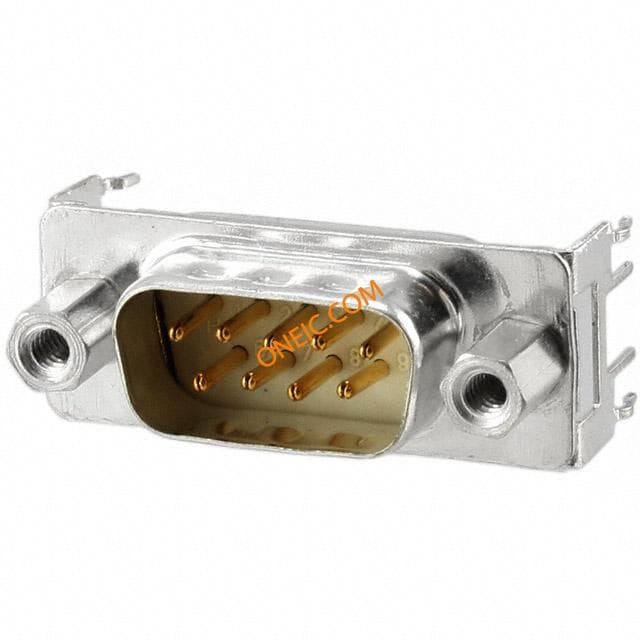

7-1393740-0
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 713937400 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Grounding | Without | Range deg/s | :TE CONNECTIVITY - Amplimite HD-20 Series |
Mechanical
| Color | Gray | Depth | 12.93mm |
| Pitch | 2.74 mm | Width | 12.6mm |
| Length | 31.19mm | Sealed | No |
| Weight | 0.02 | Packaging | Tray |
| Shell Size | 1 | Termination | Solder |
| Contact Type | Signal | 2nd Connector | With |
| Contact Shape | Round | Mounting Type | Through Hole |
| Shell Plating | Tin over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Tin | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Grounding Type | With | Mounting Style | Thru Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Board Thickness | 0.062 [1.57] | Connector Style | D-Sub |
| Insert Material | PBTP - Glass Fiber-Reinforced Thermoplastic | Locking Feature | Female Screwlocks, 4-40 UNC |
| Material - Body | :Steel | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester | Panel Mount Type | Without |
| Size / Dimension | 0.70 [.028] | Grounding Indents | Without |
| Color - Connectors | None | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Size - Insert | Full Metal | Shell Material, Finish | Steel, Tin Plated |
| Termination Post Length | 3.20 [0.126] | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Note | Connectors are preloaded with contacts.; With clinch nut screwlocks (M3) on req | Type | D-Subminiature |
| Gender | SKT | Series | HD 20 Type B - Solder Terminal |
| Features | Ground Strap | Manufacturer | AMP |
