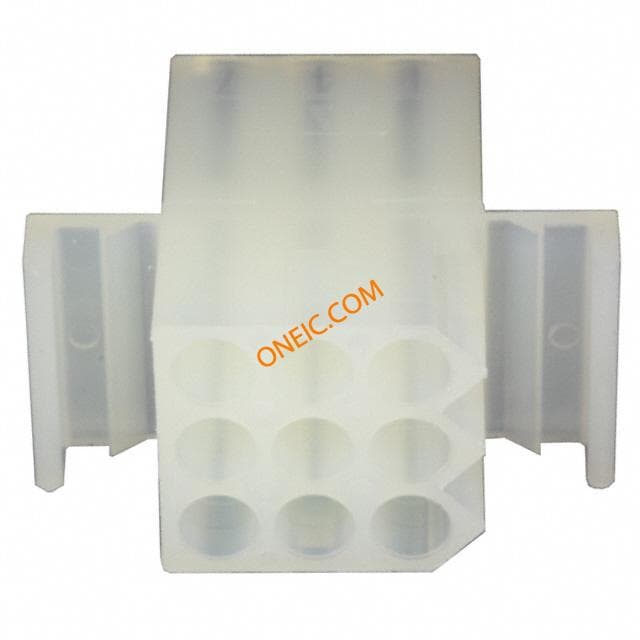

点击放大查看
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHSCompliant,ELVCompliant |
| Tariff No | 85366910 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 250 V | Voltage - Supply | 250 |
| Number of Outputs | 9 | Current Rating (Max) | 13 A |
| Connector - Voltage Input | Commercial Pin and Socket | ||
Mechanical
| Color | Natural | Pitch | 5.03 mm |
| Weight | 0.014 | Lock Type | Detent Lock |
| Packaging | Bulk | Row Spacing | 0.198" (5.03mm) |
| Contact Type | Male or Female | Body Material | :Nylon |
| Core Diameter | 0.093in. | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Plug |
| Fastening Type | Detent Lock | Mounting Style | FreeHanging |
| Number of Rows | 3 | Cord Termination | :Free Hanging |
| Housing Material | Nylon | Length - Overall | 5.03 [0.198] |
| Package Quantity | One Piece Housing | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.198" | Number of Contacts | 9 |
| Contact Termination | Crimp | Number of Positions | 9 |
| Contact Layout, Typical | Matrix | Contact Finish Thickness | 2.36 [0.093] |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | Mate-N-Lok |
| Features | FreeHanging | Manufacturer | SoftShell |
| Product Type | Housing | Number of Circuits | 9 |
| For Use With/Related Products | :.093" Commercial Pin and Socket Connectors | ||
Environmental
| Operating Temperature | +25to+65°C | ||
