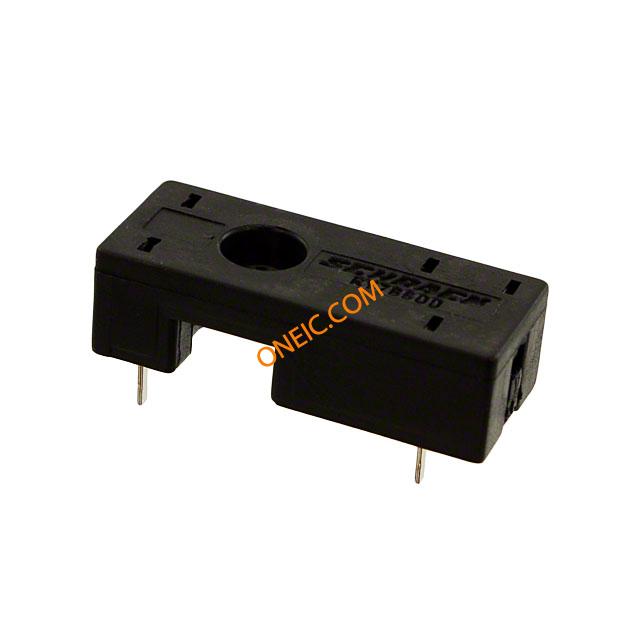

7-1393161-3
| Manufacturer | |
| Description | Conn Relay Socket SKT 5 POS Solder ST Thru-Hole RELAY SOCKET PC MNT RY 3.2MM Relay Socket For Use With RP Series, RT Series, RY Series Conn Relay Socket SKT 5 POS Solder ST Thru-Hole Search Keywords:relay connectors Socket; Mounting: PCB; Series: RYII Plug-in base grid 3.2 mm for printed circuit board, 7-1393161-3, TE Connectivity 继电器插座, 适用于RP Series, RT Series, RY Series |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 重量 | 0.03 kg | 端接方式 | Solder |
| 安装类型 | Through Hole | 端接样式 | PC Pin |
| 触点数 | 5 | 位数 | 5 |
| 兼容外壳尺寸（如TM-700等） | RP 系列、RT 系列、RY 系列 | ||
产品信息
| 类型 | Relay Socket | 连接器性别 | SKT |
| 系列 | RY, SCHRACK | 继电器类型 | RYII |
| 描述 | Plug-in base grid 3.2 mm for printed circuit board | 制造商全称 | RY78600 |
| 附件类型 | Socket | 单元数量 | 1 |
| 适用产品/相关产品 | RY Series, SCHRACK | ||
Documents & Media
相关型号

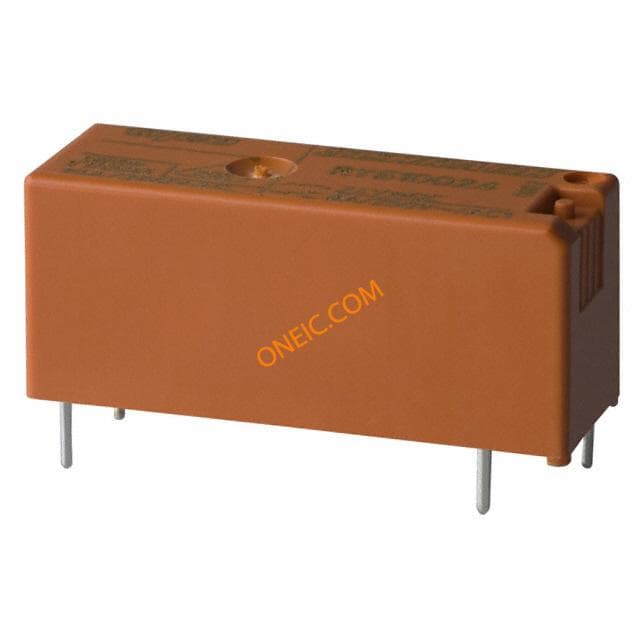

1-1393225-5
te connectivity / p&b
Electromechanical Relay SPDT 8A 48VDC 9.391KOhm Through Hole Reinforced PCB Relays up to 8A RELAY GEN PURPOSE SPDT 8A 48V Electromechanical Relay SPDT 8A 48VDC 9.391KOhm Through Hole Product Highlights:Relay Type = Miniature Power PCB RelayRelay Style = PCBRYII SeriesContact Arrangement = 1 Form C, SPDT, 1 C/OContact Current Rating = 8 Amps.
1-1393225-6
te connectivity / p&b
Electromechanical Relay SPDT 8A 60VDC 14KOhm Through Hole General Purpose Relays RY610060 Industrial Relays (General Purpose) RELAY GEN PURPOSE SPDT 8A 60V

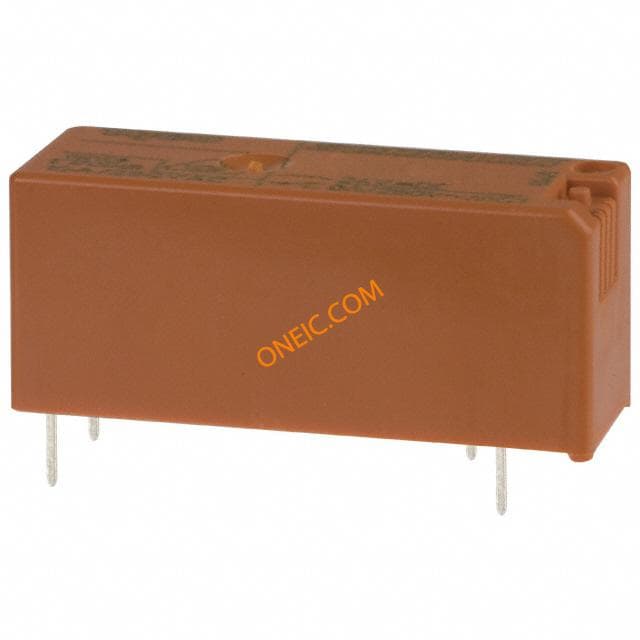

4-1393224-6
