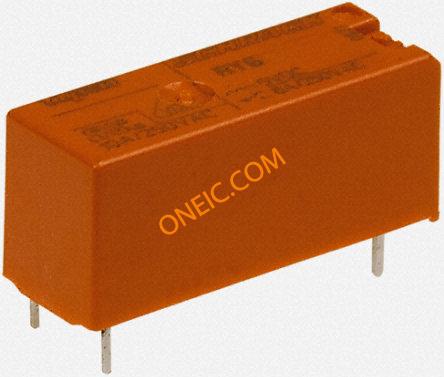

点击放大查看
对参数有疑问？问 AI 助手
Business
| Other Names | 2-1393225-9 | Part # Aliases | 2-1393225-9 |
| Product Category | General Purpose Relays | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85364110 |
Electrical
| Coil Type | Monostable | Coil Power | 245 mW |
| Range deg/s | :TE - RYII Series | Coil Current | 10.2mA |
| Release Time | 5ms | Voltage - Core | :400V |
| Coil Resistance | 2350 Ohms | Number of Poles | :1 |
| Current - Output | :8A | Voltage - Supply | 24 VDC |
| Switching Voltage | 400VAC - Max | Vgs(th) (Max) @ Id | 2.4 VDC |
| Power - Output Surge | 2 kVA | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :8A | Power - Average Forward | 220 mW |
| Vce(on) (Max) @ Vge, Ic | 16.8 VDC | Contact Rating (Current) | 8 A |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | 10.1mm | Width | 10.1 mm |
| Height | 12.3 mm | Length | 28.5 mm |
| Weight | 0.002 | Packaging | Bulk |
| Contact Form | 1 Form C (SPDT-BM) | Height (Max) | :12.3mm |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | PCB | Contact Material | Silver Nickel |
| Termination Style | PC Pin | Contact Termination | PCB |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | Miniature Power Relay | Series | RYII |
| Features | Sealed - Fully | Relay Type | General Purpose |
| Application Specifics | Power | ||
Environmental
| Operate Time | 9ms | Operating Temperature | -40°C ~ 70°C |
Documents & Media
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- 1717919.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
