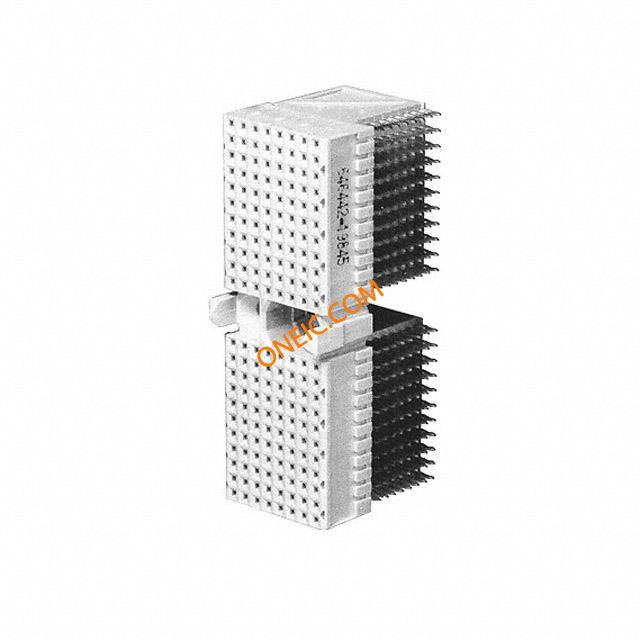

点击放大查看
1314758
| Manufacturer | |
| Description | CONN RECEPT 176POS RTANG 2MM PCB |
| Category |
商业参数
| 标准包装数量 | 10 | ||
电气参数
| 额定电压 | 750V | 最大额定电流 | 1.5A |
机械参数
| 间距 | 0.079" (2.00mm) | 包装方式 | Tube |
| 端接方式 | Press-Fit | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 排数 | 8 | 连接器样式 | D 22 |
| 连接器用途 | CompactPCI | 位数 | 176 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
