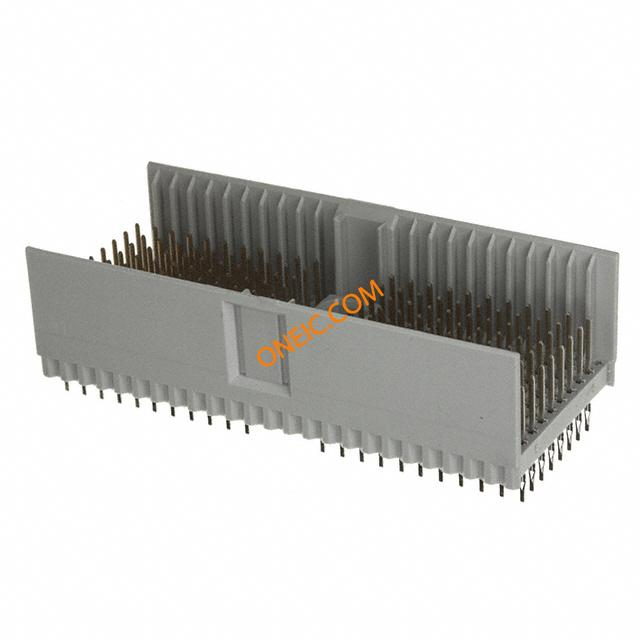

646346-1
| Manufacturer | |
| Description | Conn Hard Metric M 176 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN HEADER 176 POS VERT GOLD 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type D, 25 ColumnPlugInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, Connector,2mmHardMetricPCBMount,8R,176P,Plug,Tin-LeadoverNickel 2MM HM,ASY,T-D,HDR,8R,176P,AP |
| Category |
商业参数
| 标准包装规格 | 10 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS/Not ELV Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 串扰 | Standard | 接口 | 2mm HM |
| 额定电压 | 750V | 数据速率（最大） | ≤1 |
| 最大额定电流 | 1.5A | ||
机械参数
| 间距 | 2 mm | 长度 | 50 |
| 包装方式 | Tube | 屏蔽 | 否 |
| 屏蔽类型 | No | 端接方式 | Press Fit |
| 触头类型 | Short Tail | 极化 | Multi-Purpose Center |
| 外壳颜色 | Gray | 安装类型 | Through Hole |
| 连接器类型 | Type D, 25 Column | 接触镀层 | Gold Over Nickel |
| 排数 | 8 | 连接器样式 | D 22 |
| 连接器用途 | Backplane | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 前部连接器 | Level 1 |
| 壳体材料 | Polyester GF | 总长度 | 50.00 [1.968] |
| 包装数量 | 11 | 面板安装类型 | 垂直 |
| 先合后断 | No | 端接样式 | 插针 |
| 配接方向 | With | 触点数 | 176 |
| 端接表面处理 | Tin-Lead over Nickel | 位数 | 176 |
| 柱体长度（配合） | 3.71 [0.146] | 接触件表面处理 - 配合 | 第 1 级 |
| 典型触点布局 | ACTION PIN, Signal | 接触长度 - 配合 | 13.45 |
| 端子柱长度 | 3.7 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Hard Metric | 连接器性别 | Plug |
| 产品特性 | Board Guide | 卡类型 | 无 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 控制器系列 | 否 | 模块/板类型 | No |
| 列数 | 22 | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
相关型号
5646442-1
te connectivity / amp

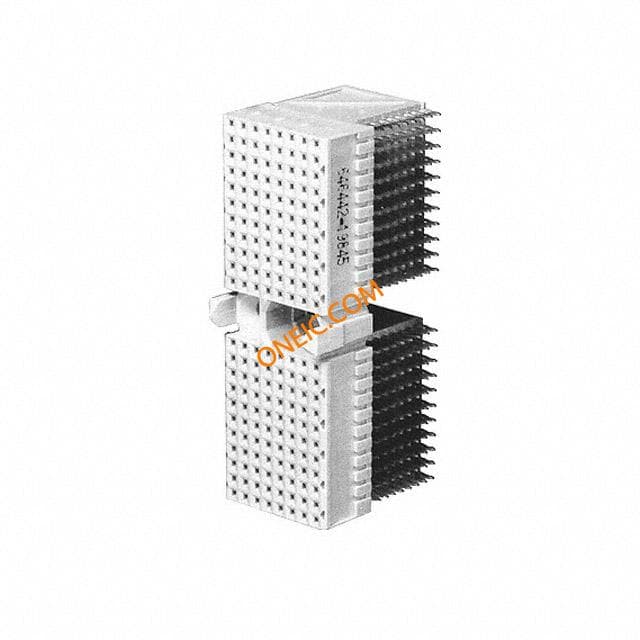

Conn Hard Metric RCP 176 POS 2mm Solder RA Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN RCPT HM 176POS RT ANG 2MM TE Connectivity Z-PACK HM Series 2mm 176 Way 8 Row Right Angle PCB Socket Through Hole Board to Board Hard Metric Connectors REC D/176P R/A B-PLANE HM Conn Hard Metric RCP 176 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Type D, 25 ColumnReceptacleInterface Type = 2mm HMContact Type = ACTION PIN Post, SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, 2MMHM,ASY,T-D,REC,TWISTTULIP TE Connectivity Z-PACK HM 系列 2mm 节距 176 路 直角 8 排 母 背板连接器, 焊接端子, 1.5A 5646442 2MM HM,ASY,T-D,REC,TWIST TULIP
1314758
TE Connectivity
CONN RECEPT 176POS RTANG 2MM PCB
