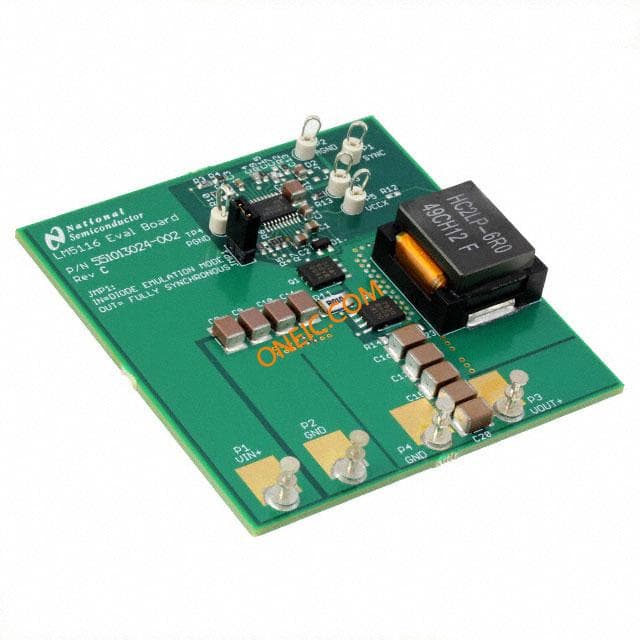

LM5116MH/NOPB

Business

Other Names	LM5116MHNOPB	Standard Package	Rail / Tube
Factory Pack Quantity	73

RoHS	Lead free / RoHS Compliant	Part Status	ACTIVE
Rad Hardened	No

Output	1	PWM Type	Current Mode
Duty Cycle	98%	Output Type	Adjustable
Cuk Converter	No	Buck Converter	Yes
Isolated Power	No	Voltage Rating	1.215 to 80 V
Boost Converter	No	Frequency - Max	1MHz
Current - Output	3.5 A	Current - Supply	4.6 mA
Duty Cycle (Max)	98 %	Voltage - Supply	4.75 to 15 V
Doubler Converter	No	Flyback Converter	No
Number of Outputs	1	Divider/Multiplier	No
Inverting Converter	No	Current Rating (Max)	Catalog
Frequency - Switching	50 kHz to 1 MHz	Voltage - Output (Max)	80 V
Current - Quiescent (Iq)	4.6	Reverse Recovery Time (trr)	No
Voltage - Output (Min/Fixed)	1.215 V	Voltage - Output Difference (Typ) @ Distance	Yes

Type	Synchronous Buck Controller	Series	LM5116
Features	Adjustable Current Limit Adjustable UVLO Enable Frequency Synchronization Light Load Efficiency Synchronous Rectification	Function	Controller
Software	SNVS499G	Topology	Buck
Multiplier	No	Application	Communications & Telecom Computing & Multimedia Industrial
Control Method	Current Mode	Pattern Number	Y
Controller Type	Buck Controller, Synchronous	Development Kit	LM5116EVAL/NOPB
Utilized IC / Part	View	Other Specifications	No
