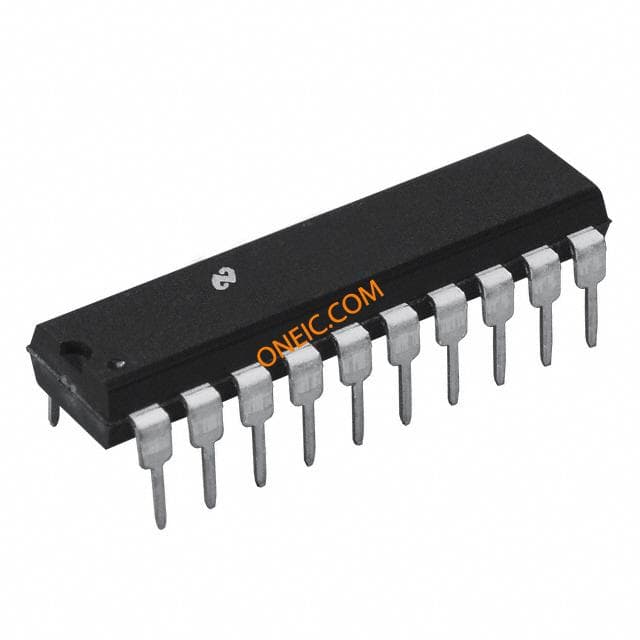

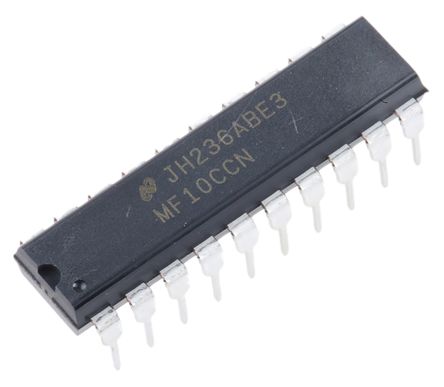

MF10CCN/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 18 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85339000 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| VSWR | 7 | Voltage | 4.5 |
| Response | :Low Pass, High Pass, Band Pass | Frequency | 30 |
| Filter Type | Universal Switched Capacitor | Filter Order | 4th |
| Power - Input | Single/Dual | Clock Frequency | :1.5MHz |
| Frequency - Max | 0.03 | Voltage - Supply | ±5|12 V |
| Power Supply Type | Dual, Single | Number of Channels | 3 Channel |
| Voltage - Supply Span (Typ) | �5 V | Frequency - Cutoff or Center | 30 kHz |
Mechanical
| Width | 6.6mm | Height | 3.3mm |
| Length | 26.42mm | Weight | 0.04 |
| Packaging | Tube | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :20 |
| Package / Case | 20PDIP | Package Cooled | MDIP |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | 18 | TUBE |
| Size / Dimension | 26.42 x 6.6 x 3.3mm | Number of Positions | 20 |
| Supplier Device Package | 20-DIP | ||
Product Info
| Type | Universal | Class | :Bandpass |
| Series | MF10-N | Software | SNOS547C |
| Base Unit | :10 | Filter Size | :DIP |
| Architecture | Switched Capacitor | Number of Units | 4th |
| Number of Filters | 2 | Functional Diagram | fbd_snos547c.gif |
| Number of Circuits | 2 | Utilized IC / Part | View |
Environmental
| Temperature - Test | 0 to 70 | Operating Temperature | 0 to 70 °C |
| Operating Temperature - Junction | 70C | ||
