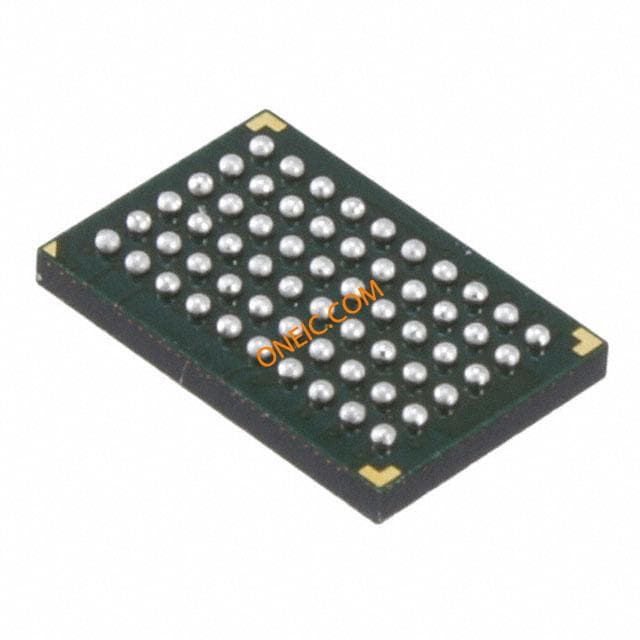

LMX9830SM/NOPB
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Factory Pack Quantity | 320 |
| Standard Package Name | BGA | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Part Status | ACTIVE | Rad Hardened | No |
| Other Specifications | :Class 2 | ||
Electrical
| Data Rate | :704Kbps | Frequency | 2.4GHz |
| Interface | I2C, Microwire, SPI | Resolution | SRD |
| Power Level | Class II | Sensitivity | 4 |
| Output Power | 3 dBm | Data Interface | PCB, Surface Mount |
| Power - Output | 0dBm | Voltage Rating | 2.5 |
| Data Rate (Max) | 0.704 Mbps | Frequency - Max | 2480 |
| Frequency Range | :2.402GHz to 2.48GHz | Current - Supply | 0.065 A |
| Voltage - Supply | 2.5 to 3.6 V | Serial Interfaces | :UART |
| Sensitivity (mV/g) | :-80dBm | Current - Receiving | 65mA |
| Frequency - Operating | 2402 | Current - Transmitting | 65mA |
| Voltage - Supply (Min) | 2.5 V | Current - Supply (Main IC) | 65 mA |
Mechanical
| Width | 6 | Weight | 0.002 |
| Packaging | Tray | Lead Style | Ball |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 60FBGA | Package Cooled | FBGA |
| Length - Overall | 9 | Package Quantity | FBGA |
| Antenna Connector | PCB, Surface Mount | Number of Positions | 60 |
| Shell Size - Insert | 0.86 | ||
Product Info
| Type | Bluetooth | Series | LMX9830 |
| Software | SNOSAU0C | Technology | Bluetooth |
| Applications | Audio Gateway, Data Logging, ISM, PDA, POS Terminals | Firmware Version | :Bluetooth 2.0 |
| Functional Diagram | fbd_snosau0c.gif | Utilized IC / Part | View |
| Printed Circuit Board | 60 | Modulation or Protocol | Bluetooth v2.0, Class 2 |
Environmental
| Mechanical Life | New At Mouser | Operating Temperature | - 40 C to + 85 C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- lmx9830.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
