LP3943ISQ/NOPB
| Manufacturer | |
| Description | LED DRVR 16Segment 2.5V/3.3V/5V 24-Pin LLP EP T/R LED Lighting Drivers Funlight Led Driver IC LED DRIVER RGB 24-LLP LED Display Drivers Funlight Led Driver RGB/White/Blue 16-LED Fun Light Driver |
| Category |
商业参数
| 其他名称 | LP3943ISQ/NOPBDKR | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 零件状态 | ACTIVE |
电气参数
| LED | 16 | 通道数 | 16 |
| 频率 | 400 kHz | 额定功率 | 400 mW |
| 额定电压 | 2.3 V to 5.5 V | 输出电流 | 25 mA |
| 供电电流 | 0.55 mA | 供电电压 | 2.3 to 5.5 V |
| 输出数量 | 16 | 最大额定电流 | Catalog |
| 平均正向功率 | 400 mW | 最大功耗 | 400 mW |
| 输出电流/通道 | 25 | 输出高/低电流 | 25000(Typ) uA |
机械参数
| 高度 | 0.8 mm | 长度 | 4 mm |
| 包装方式 | Reel | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 封装形式 | 24LLP EP |
| 包装数量 | 1000 | SMALL T&R | 供应商器件封装 | 24-LLP-EP (4x4) |
产品信息
| 类型 | RGB, White LED | 系列 | LP3943 |
| 软件 | SNVS256B | 拓扑 | Open Drain, PWM |
| 制造商全称 | Texas Instruments | LED数量 | 16 |
| 功能框图 | fbd_snvs256b.gif | 段数 | 16 |
| 使用的IC/零件 | View | 内部连接 | Yes |
环境参数
| 机械寿命 | New At Mouser | 测试温度 | -40 to 85 |
| 工作温度 | + 85 C | ||
Documents & Media
相关型号

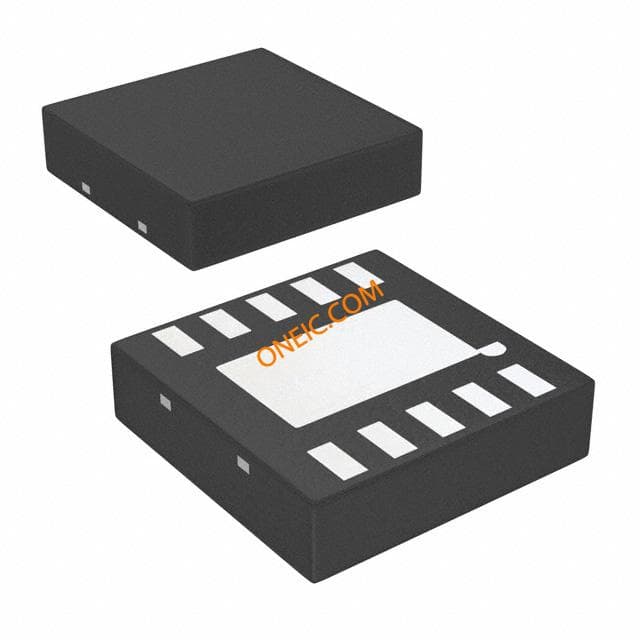

LM2750LD-5.0/NOPB
texas instruments
Conv DC-DC Single Step Up 2.7V to 5.6V 10-Pin LLP EP T/R IC REG MULTI CONFIG 5V 10LLP LM2750LD-5.0/NOPB, Boost Converter, Step Up 0.12A 5V, 1700kHz, 10-Pin LLP EP Voltage Regulators - Switching Regulators Low Noise Regulator Switched Capacitor Boost Regulator Texas Instruments 升压转换器, 120mA, 4.8 → 5.2 V输出, 1700 kHz, 10针 LLP封装 Switching Voltage Regulators Low Noise Regulator Switched Capacitor Boost Regulator 10-WSON -40 to 85

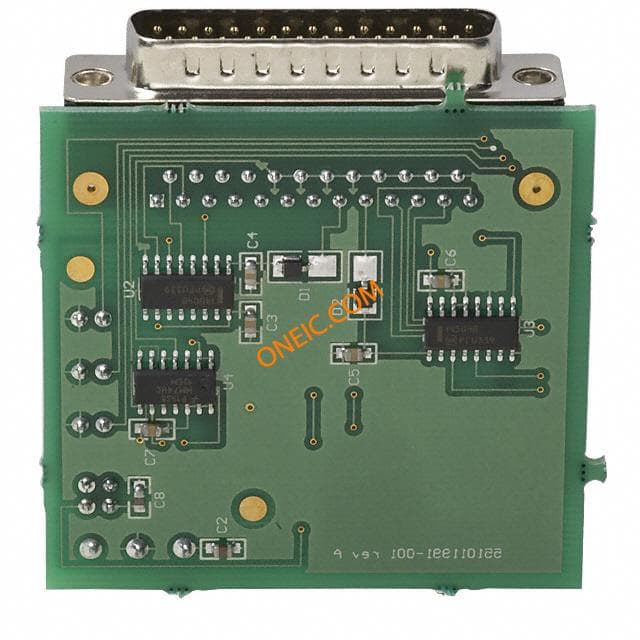

LP3943ISQEV
