Business
| Lead Time | 56 Days | Subcategory | Heat Sink |
| Standard Package | 100 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | ||
Mechanical

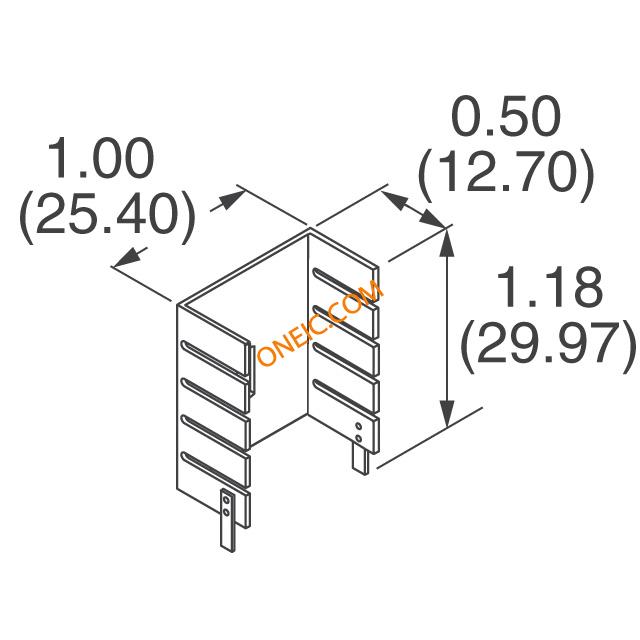

| Shape | Rectangular | Width | 1.000" (25.40mm) |
| Length | 1.180" (29.97mm) | Material | Aluminum |
| Package Cooled | TO-220 | Material Finish | Black Anodized |
| Attachment Method | Bolt On and PC Pin | Height - Seated (Max) | 0.500" (12.70mm) |
Product Info
| Type | Board Level, Vertical | ||
Environmental
| Thermal Resistance @ Natural | 16.2°C/W | Power Dissipation @ Temperature Rise | 4W @ 65°C |
| Thermal Resistance @ Forced Air Flow | 7.8°C/W @ 200 LFM | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Board Level Heat Sinks Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
