Business
| Product | Heat Sinks | Lead Time | 56 Days |
| Subcategory | Heat Sink | Product Category | Heat Sinks |
| Standard Package | 100 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 76041090 |
| Rad Hardened | No | ||

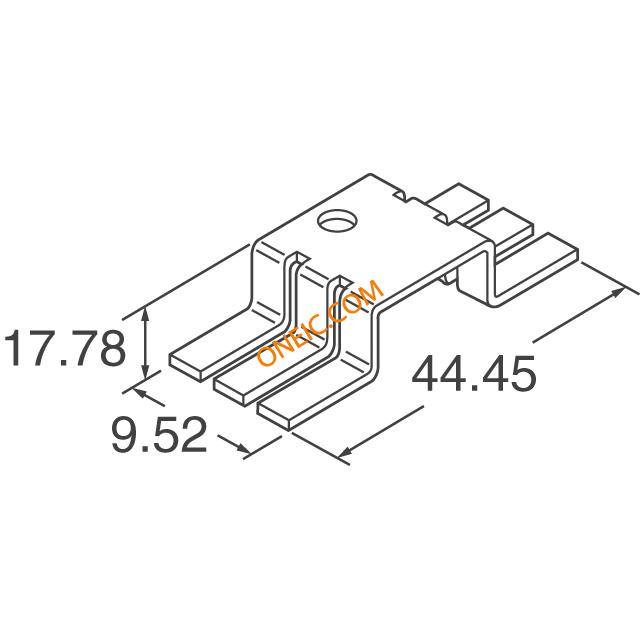

Mechanical
| Color | Black | Depth | 44.5 mm |
| Shape | Rectangular | Width | 11.05 mm |
| Finish | Black Anodized | Height | 19.05 mm |
| Length | 28.45 mm | Weight | 0.002 |
| Material | Aluminum | Fin Height | Folded |
| Body Material | Aluminum | Mounting Type | Horizontal |
| Mounting Style | SMD/SMT | Package / Case | TO-220 |
| Package Cooled | TO-220, TO-202 | Width (Inches) | :0.701" |
| Height (Inches) | :0.37" | Material Finish | Black Anodized |
| Width - Overall | :17.8mm | Front Connection | 6°C/W@400LFM |
| Length - Overall | 17.8 mm | Primary Material | TO-220/TO-202 |
| Size / Dimension | 1.75×0.7in. | Attachment Method | Bolt On |
| Heat Sink Material | Aluminum | Height Above Board | 0.375in. |
| Height - Seated (Max) | 0.375" (9.52mm) | Shell Size - Insert (Convert From) | :9.4mm |
Product Info
| Type | Board Level | Features | HorizontalMounting |
| Application | TO-220, TO-202 | Configuration | Horizontal |
| Bus Connection | 70°C@4W | Application Specifics | BoardLevelPowerSemiconductors |
Environmental
| Thermal Resistance | 6 C/W | Thermal Resistance @ Natural | 17.5°C/W |
| Power Dissipation @ Temperature Rise | 4W @ 70°C | Thermal Resistance @ Forced Air Flow | 6.0°C/W @ 400 LFM |
