1794260000
| Manufacturer | |
| Description | Conn Shrouded Header HDR 16 POS 3.5mm Solder RA Thru-Hole Box TERM BLOCK HDR 16POS R/A 3.5MM TERM BLOCK HEADER, 16 POLES, 3.5 PITCH |
| Category |
商业参数
| 其他名称 | 1794260000-ND | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 电流 | 10A | 电压 | 150V |
机械参数
| 颜色 | Black | 间距 | 3.5 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | :PCB Terminal Block | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | :Copper Alloy |
| 排针方向 | 90°, Right Angle | 触点数 | 16 |
| 位数 | 16 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | :Minimate S2L-SMT 3.5 | 层数 | 2 |
| 每层位数 | 8 | ||
Documents & Media
相关型号
1757340000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM
1727610000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM
1748060000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Panel Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM
1757740000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM

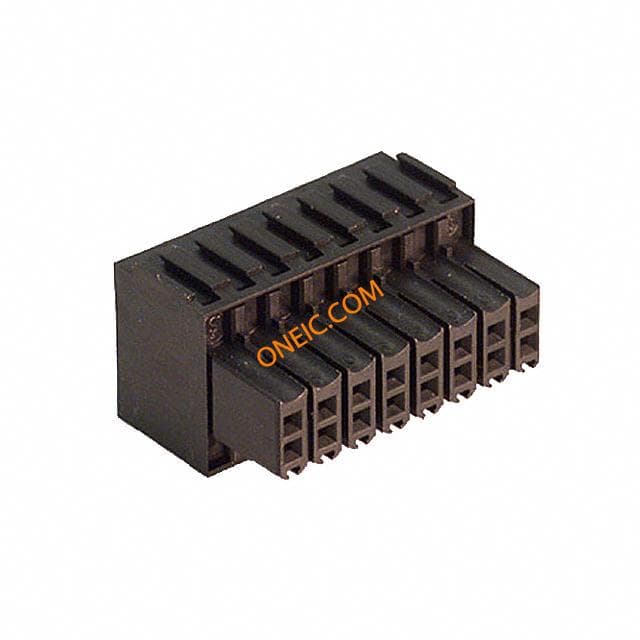

1727690000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM

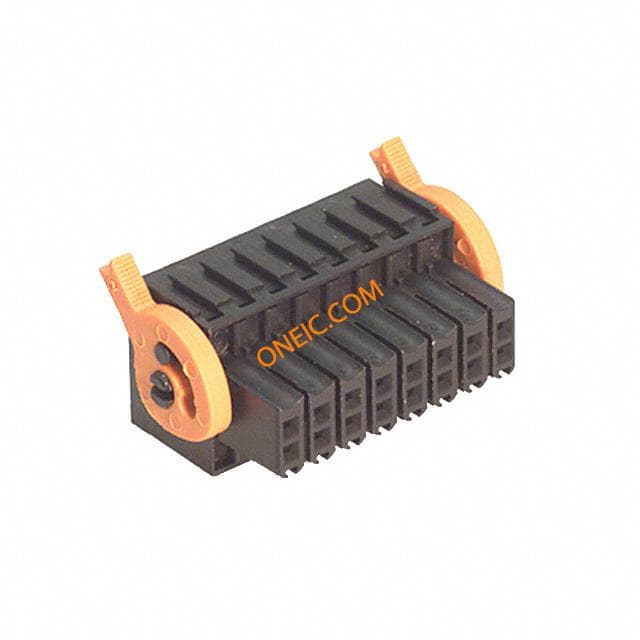

1748540000
weidmuller
Conn Terminal Block SKT 16 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 16POS STR 3.5MM

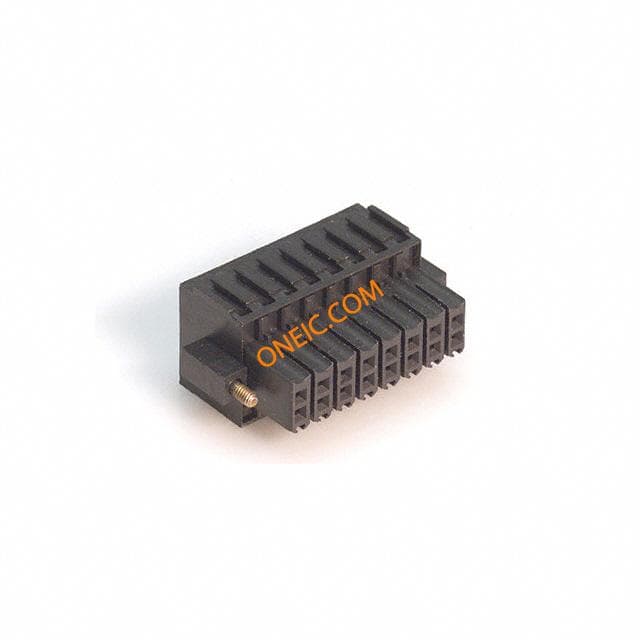

1748220000
