点击放大查看

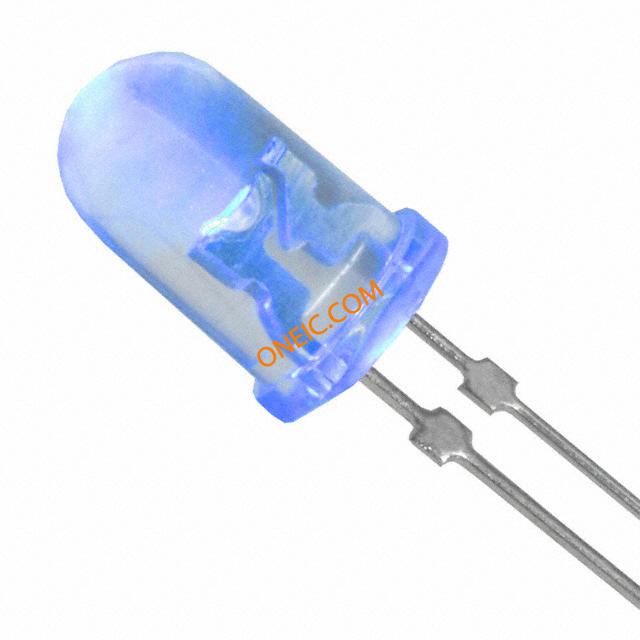

C503B-BCS-CV0Z0461
| Manufacturer | |
| Description | Standard LEDs - Through Hole Blue Round LED LED 5MM BLUE CLEAR 470NM 30DEG LED, HI BRIGHT, 5MM LED, BLUE, T-1 3/4 (5MM), 4.1CD, 480NM Cree 蓝色 (480 nm 主波长) LED, C503B-BCS-CV0Z0462, 4 V, 12 cd, 30°视角 5mm (T-1 3/4) 通孔 |
| Category |
商业参数
| 标准包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85414010 |
电气参数
| 灯类型 | :T-1 3/4 (5mm) | 光学尺寸 | 5 mm |
| 视角 | 30 deg | 输出电流 | 20mA |
| 供电电压 | 3.2V | 峰值波长 | :480nm |
| LED正向电流 | 20 mA | LED正向电压 | 3.2 V |
| 毫坎德拉等级 | 7065mcd | 主波长 | 470 nm |
| 直流正向电流（If）（最大） | :20mA | ||
机械参数
| 颜色 | Blue | 高度 | 8.80mm |
| 重量 | 0.01 | LED颜色 | :Bleu |
| 包装方式 | Bulk | 透镜颜色 | Clear |
| 透镜样式 | Dome | 透镜尺寸（因值为长宽高，非直径） | 5 mm |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 封装形式 | Radial | 透镜样式/尺寸 | Round with Domed Top, 5mm, T-1 3/4 |
| 照明颜色 | Blue | ||
产品信息
| 类型 | Round LED | 透镜类型 | Clear |
环境参数
| 工作温度 | + 95 C | 光通量 @ 电流/温度 | 4100 mcd |
Documents & Media
相关型号
CLB300BTP
VCC
LED Lenses Blue Fresnel Lens Cliplite 5mm Panel Lenses And Litepipe For PCB Mounted LEDs CLIPLITELENSMOUNTSFORT1&T1-3/4BLUE VCC CLB300 系列 圆形 LED 透镜 , 7.11mm直径, 使用于T-1 灯，T-1-3/4 灯
CMS322BTP
VCC
LED Lenses 5mm Lo Prof Seal Blu Moisture Sealed Low Profile Lenses For Leds CLIPLITEPANELLENSESFORPCBBLUE
CLF280CTP
VCC
LED Lenses Clear Fresnel Lens Cliplite 5mm Lens Mounts For 5mm LEDs, Polycarbonate Lens Material LED LENSES CLIPLITELENSMOUNTSFORT1&T1-3/4CLEAR

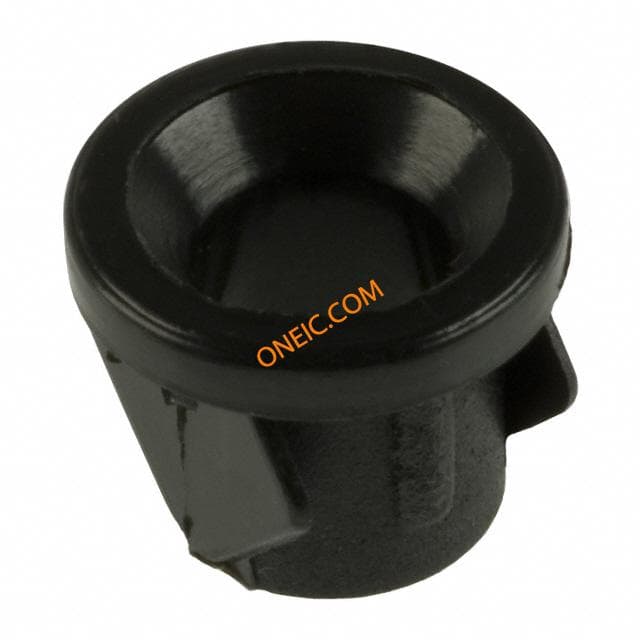

SSH-LXH501
