LMH020-0850-27G9-00001SS
| Manufacturer | |
| Description | LED MOD 850LM WHITE 2700K DOME LED Lighting Modules 2700 K, 850lm, Dome Sunset Dimming LMH020-0850-27G9-00001SS |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Modules, Circular | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Dimming | Sunset Dimming | Beam Angle | 96 deg |
| Wavelength | 2700K | Luminous Flux | 850 lm |
| Viewing Angle | 96° | Current - Output | 440mA |
| Driver Circuitry | No | Voltage - Supply | 19.9V |
| LED Forward Current | 440 mA | LED Forward Voltage | 19.9 V |
| Current Rating (Max) | 440mA | Wavelength - Dominant | 2700 K |
| Light Emitting Surface (LES) | 68.00mm Diameter | Lumens/Watt @ Current - Test | 97 lm/W |
| Flux @ 85degC, Current - Test | 850 lm (790 lm ~ 909 lm) | ||
Mechanical
| Size | 88.2 mm x 60.3 mm | Color | White, Warm |
| Height | 60.3 mm | Diameter | 88.2 mm |
| Packaging | Bulk | Lens Style | Dome |
| Connector Usage | No | Size / Dimension | 88.20mm Diameter |
| Illumination Color | Warm White | CRI (Color Rendering Index) | 90 |
Product Info
| Type | LED Module | CCT (K) | 2700K |
| Features | Dimming - Sunset, Lens - Dome | Configuration | Circular |
| Number of LEDs | 1 | ||
Environmental
| Luminous Flux @ Current/Temperature | 850 lm | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
CLSD001A
NMB Technologies Corporation
Low and High Current LED Driver - 10W to 20W Power Rating LED SUPPLY CC AC/DC 13.3-42V DIMMABLE LED DRIVER, 10W to 20W, 13.3V to 42V, 350mA to 750mA
$162.7920
Details
PDA050W-450G
PHIHONG USA
LED SUPPLY CC AC/DC 22-26.5V
$477.4987
Details

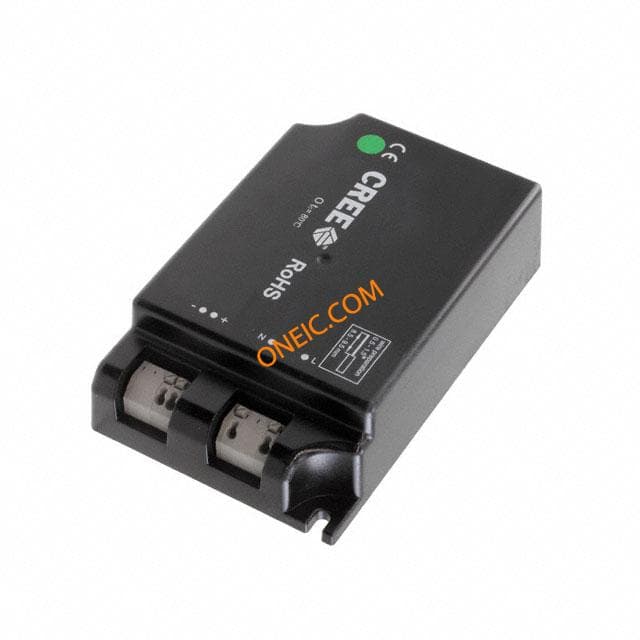

LMD125-0018-C440-2010000
