Business
| Product | Connectors | Other Names | ACX1223 |
| Part # Aliases | 319-0172 99H5010 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 375V |
| Coupling Factor | Threaded | Frequency - Max | 12.4GHz |
Mechanical
| Depth | 8 | Length | 0.78 in. |
| Weight | 0.005 | Packaging | Bulk |
| Cable Type | RG-174, RG-188A, RG-316, Belden 7805A | Body Finish | Gold |
| Cable Group | RG-174, 316, LMR-100 | Orientation | Straight |
| Termination | Crimp | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Gold | Plating - Body | Gold |
| Connector Style | SMA | Connector Usage | Threaded |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Length - Overall | 19.8 | Primary Material | SMA |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Bulkhead |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | SMA | Gender | RCP |
| Series | :- | Features | Heat Shrink Tubing |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | SMA | Application Specifics | Commercial |
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
901-9876-RFX
amphenol
$26.2973
Details

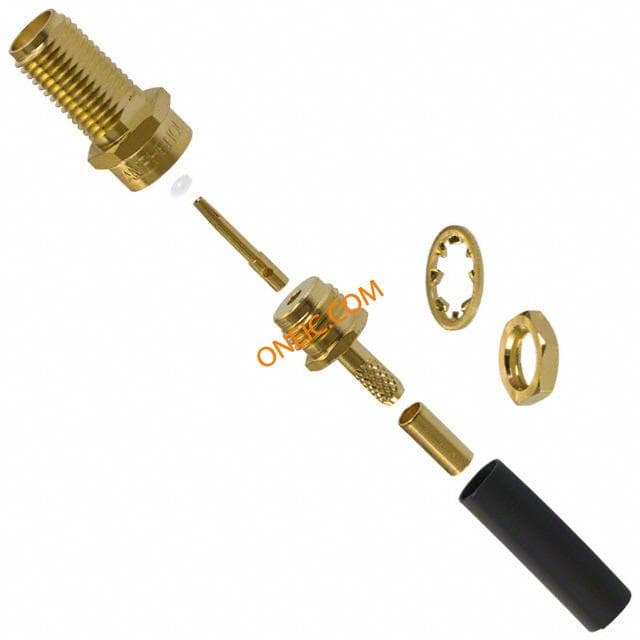

901-9610-3
amphenol
$148.8833
Details

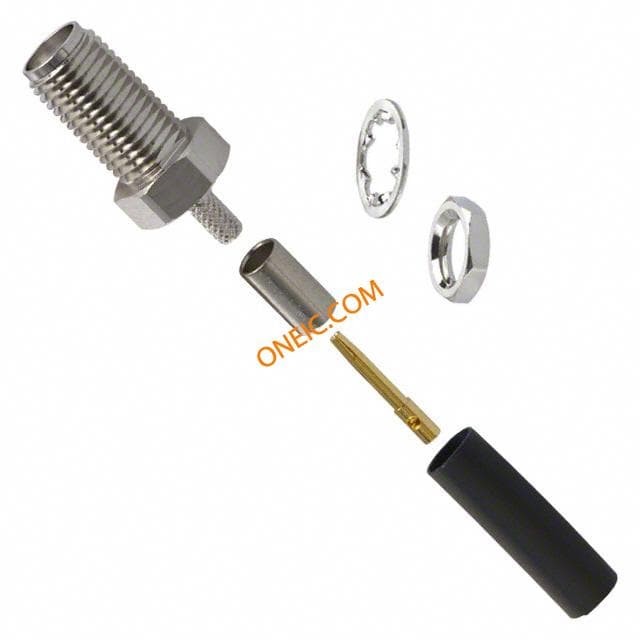

901-9879-RFX
