Business
| Product | Connectors | Other Names | ACX1202 |
| Part # Aliases | 319-0158 87H5616 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Frequency | 0 to 12.4 | Impedance | 50 Ohm |
| Voltage Rating | 375V | Coupling Factor | Threaded |
| Frequency - Max | 12.4GHz | ||
Mechanical
| Depth | 8 mm | Weight | 0.120637 oz |
| Diameter | Not Required mm | Packaging | Bulk |
| Cable Type | RG-174, RG-188A, RG-316, Belden 7805A | Body Finish | Gold |
| Cable Group | RG-174, 316, LMR-100 | Orientation | Straight |
| Termination | Crimp | Weight (g): | 5.20000 |
| Body Material | Brass | Housing Color | Gold |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Housing Finish | Gold |
| Mounting Style | Cable | Plating - Body | Gold |
| Connector Style | SMA | Connector Usage | Threaded |
| Contact Material | Brass | Housing Material | Brass |
| Length - Overall | 23 mm | Primary Material | SMA |
| Termination Style | Cable - Crimp | Shield Termination | Crimp |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | SMA | Gender | PL |
| Series | :- | Polarity | Standard |
| Connection Type | Flexible Cable | RF Family/Standard | SMA |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts

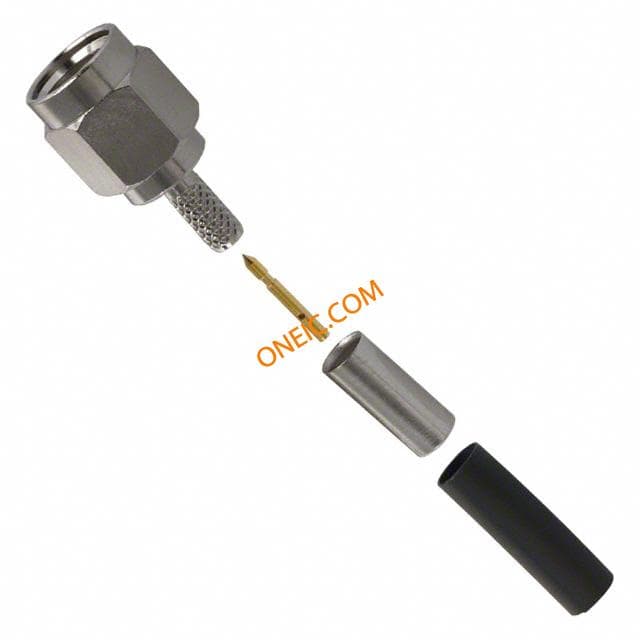

901-9877-RFX
amphenol
$26.0517
Details
901-143-6RFX
amphenol
$41.2536
Details

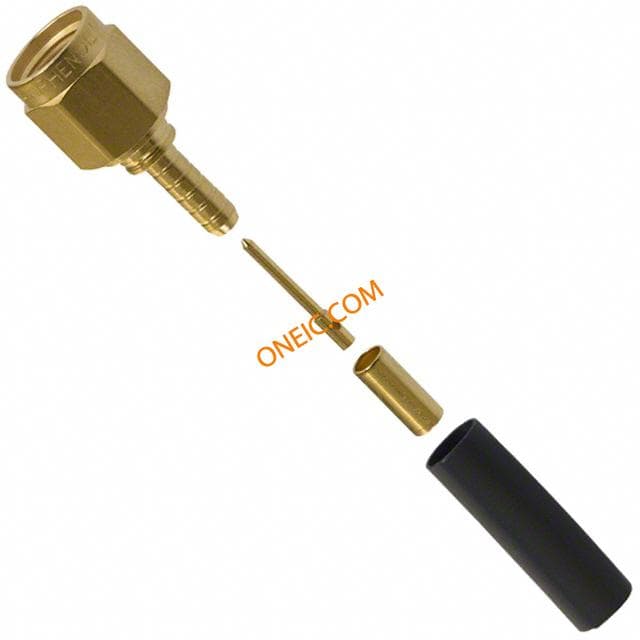

901-9511-3
amphenol
$105.0493
Details

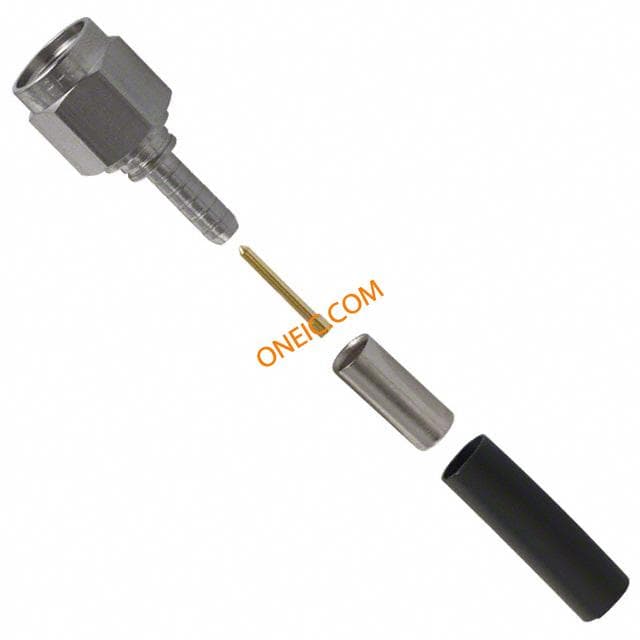

901-9511-3SF
amphenol
$60.0780
Details

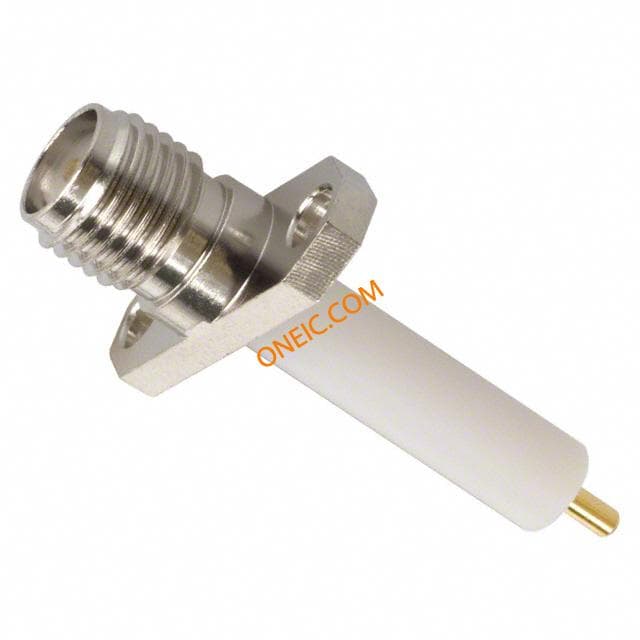

901-9891-RFX
amphenol
$58.8267
Details

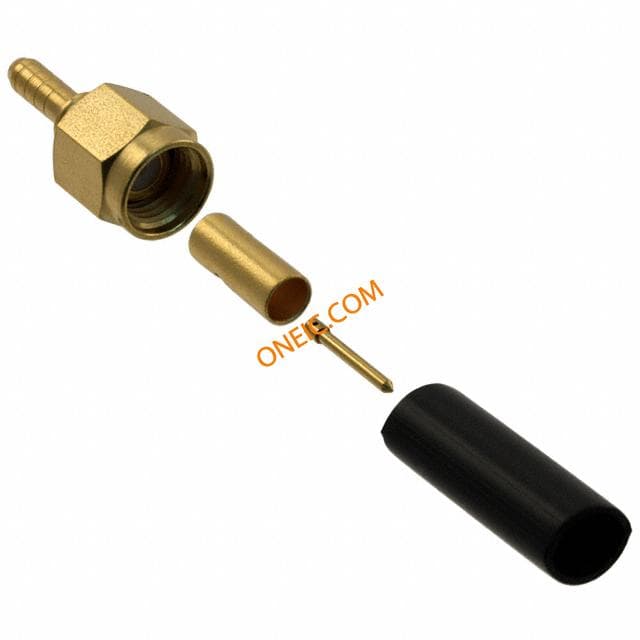

901-9501-3
amphenol
$199.9891
Details
7805R 008500
Belden Wire & Cable
$11.2231
Details
47-10150
Amphenol Connex
$870.4802
Details

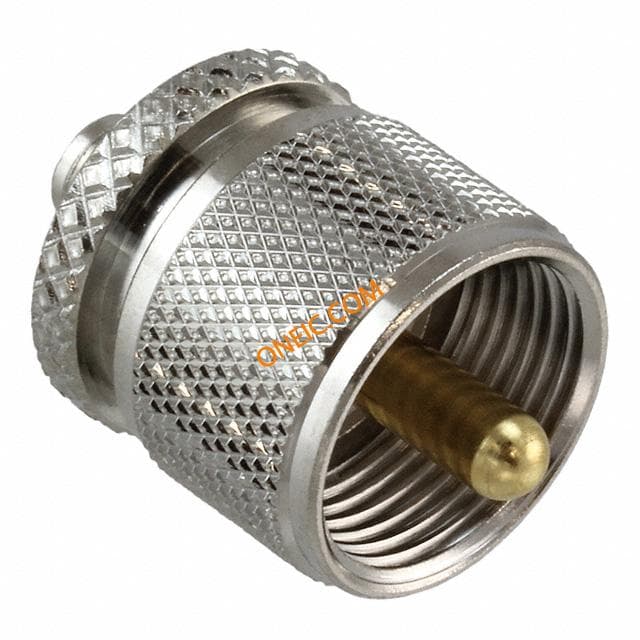

242109
amphenol connex
$155.7424
Details
47-20004
amphenol connex
$275.1008
Details

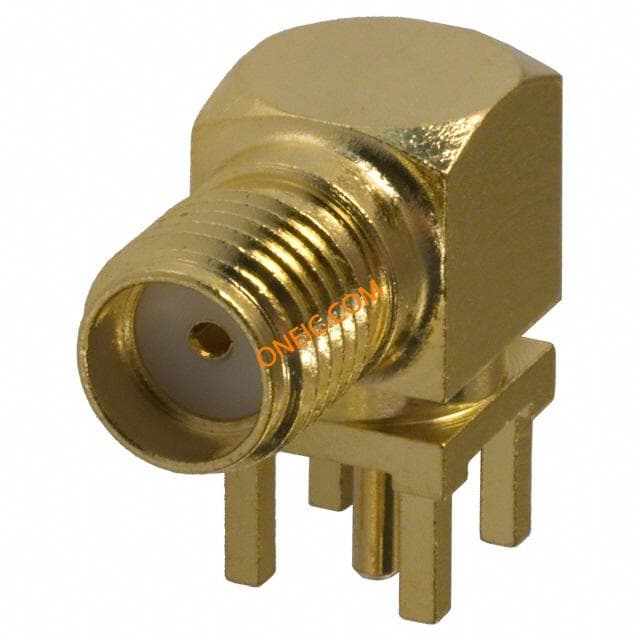

132136
amphenol connex
$41.8880
Details

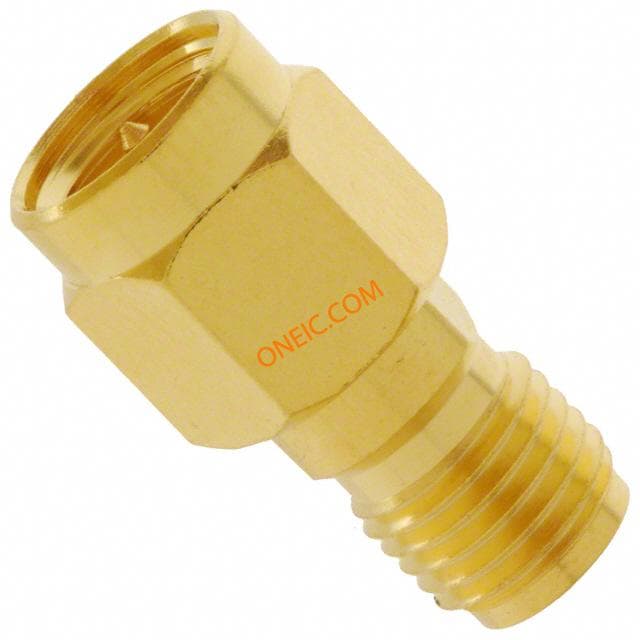

132171RP
amphenol connex
$53.2440
Details
132348
amphenol connex
$32.1300
Details

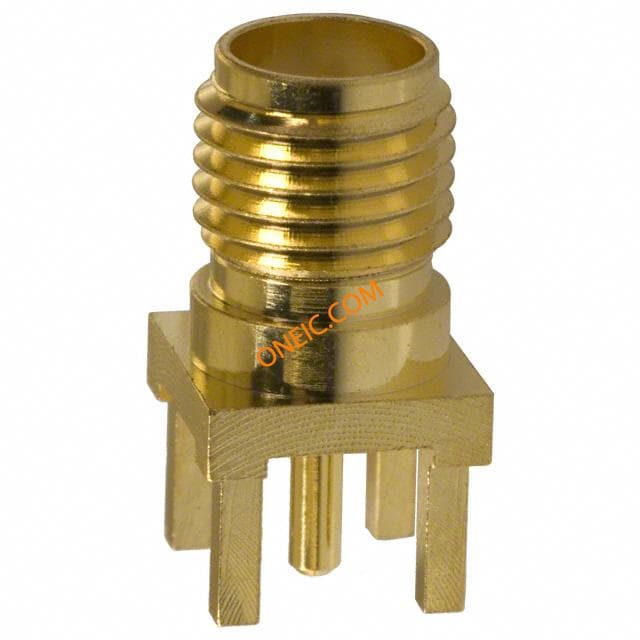

132134
Amphenol Connex
$14.9600
Details
132114
Brady Corporation
$20.0002
Details
132169
Amphenol Connex
$37.1756
Details

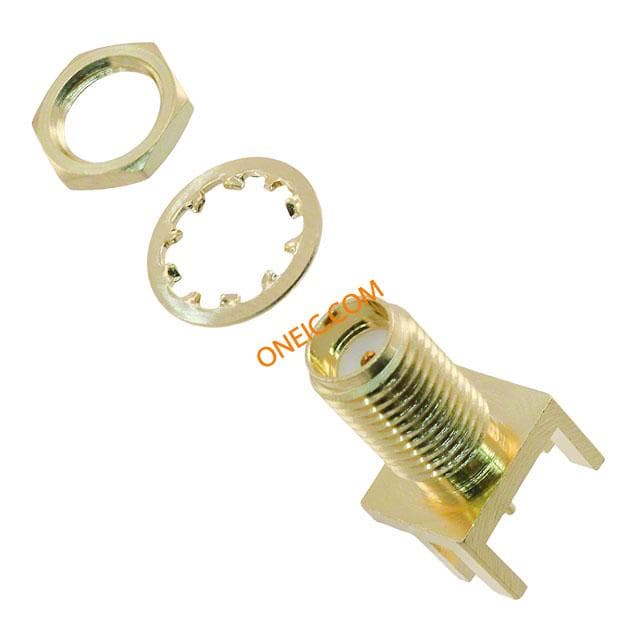

132289
amphenol connex
$38.0214
Details
901-9875
amphenol
$93.1078
Details

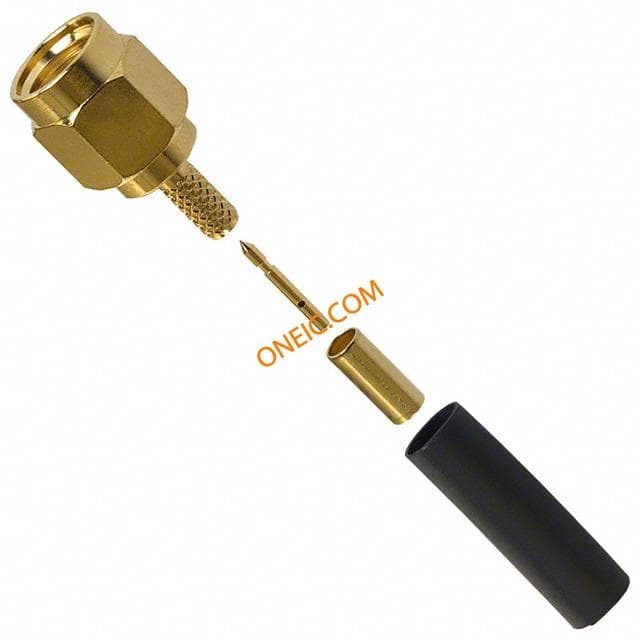

901-9916
