ADP1828YRQZ-R7
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADP1828YRQZ-R7TR | Standard Package | Tape & Reel |
| Standard Package Name | QSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
Electrical
| Accuracy | :0.85% | PWM Type | Voltage Mode |
| Frequency | :600kHz | Duty Cycle | 93% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Regulator Type | :Step Down |
| Voltage Rating | 0.6 to 20.4 V | Boost Converter | No |
| Frequency - Max | 720kHz | Current - Output | :100mA |
| Voltage - Supply | 1 to 24 V | Doubler Converter | No |
| Flyback Converter | No | Number of Outputs | 1 |
| Divider/Multiplier | No | Inverting Converter | No |
| Frequency - Switching | 300 kHz to 600 kHz | Voltage - Input (Min) | :20V |
| Voltage - Output (Max) | :5V | Common Mode Transient Immunity (Min) | Industrial |
| Voltage - Continuous Operating (Max) (MCOV) | :18V | Voltage - Output Difference (Typ) @ Distance | :0.6V |
Mechanical
| Width | 3.91 | Weight | 0.0002 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :20 |
| Package / Case | 20QSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 8.66 | Package Quantity | QSOP |
| Number of Positions | 20 | Shell Size - Insert | 1.65(Max) |
Product Info
| Type | Step Down | Series | ADP1828 |
| Shutdown | Yes | Topology | Buck |
| Base Unit | :1828 | Printed Circuit Board | 20 |
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts

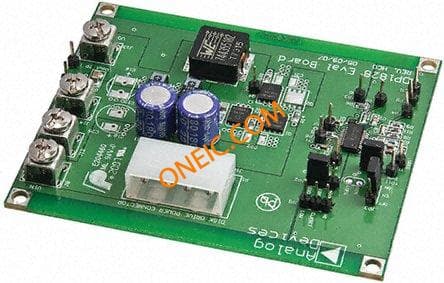

ADP1828HC-EVALZ
analog devices
$948.7945
Details
ADP1828YRQZ-R7
analog devices
$13.4028
Details

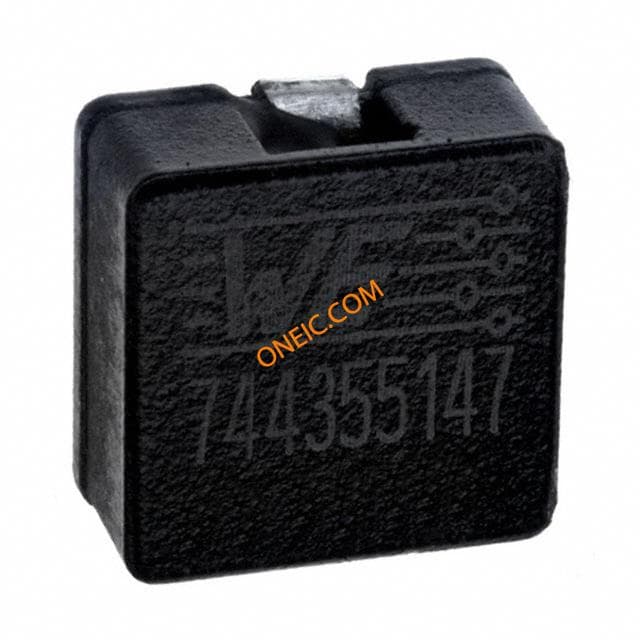

744355147
Wurth Electronics
$25.1600
Details

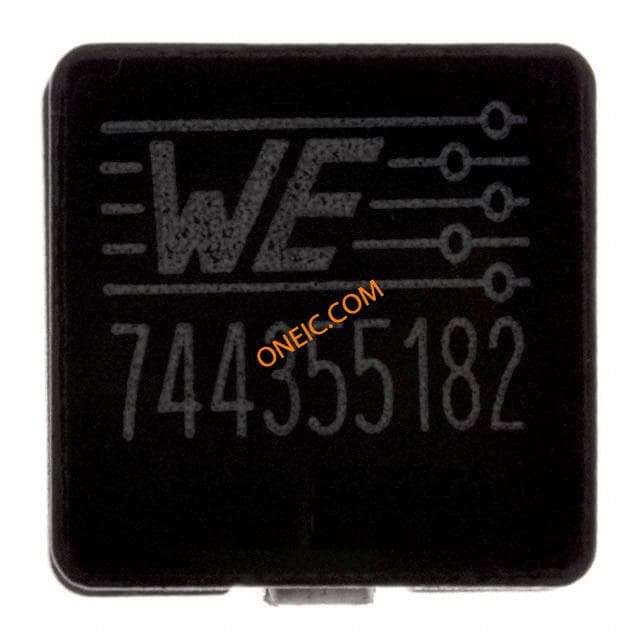

744355182
