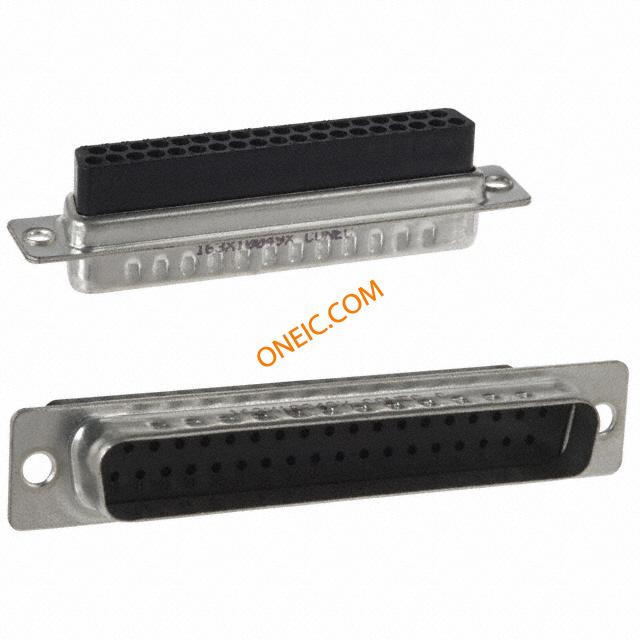

163X10049X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Standard Connectors 37 POS CRIMP MALE Conn Housing PL 37 POS Crimp ST Panel Mount CONN DSUB 37POS PLUG CRIMP
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1066	产品类别	D-Sub Standard Connectors
标准包装数量	50

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

颜色	Black	高度	12.93
包装方式	Tray	导线线规	20-28
触头类型	Signal	安装类型	Straight
外壳镀层	Tin	连接器类型	Plug for Male Contacts
法兰特征	Housing/Shell (Unthreaded)	安装样式	Wire
排数	2	外壳材料（壳体）	Steel
连接器样式	D-Sub	触头材料	Copper Alloy
壳体材料	Steel	总长度	69.7
端接样式	Crimp	触点数	37
介电材料	Polybutylene Terephthalate (PBT), Glass Filled	位数	37
外壳镀层厚度	315µin (8.00µm)	外壳材料及表面处理	Steel, Tin Plated
外壳尺寸，连接器布局	4 (DC, C)

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Male	产品特性	Grounding Indents

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

16K1A178A.pdf

PDF Document

163X100x9X Drawing
