点击放大查看

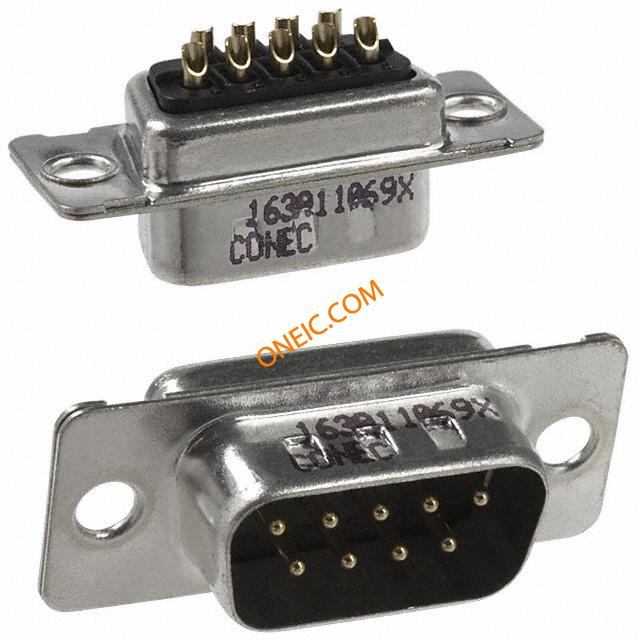

163A11069X
| Manufacturer | |
| Description | D-Sub Standard Connectors 9 POS SOLDER CUP AWG 20 MALE THRUHOLE Conn D-Subminiature PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB 9POS PLUG SOLDER |
| Category |
商业参数
| 其他名称 | 626-1026 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 132 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 125V | 最大额定电流 | 7.5A |
| 最小输入电压 | 125V | 最小供电电压 | 125V |
机械参数
| 颜色 | Black | 深度 | 14.52 mm |
| 高度 | 12.93 mm | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触点形式 | Signal |
| 触头类型 | Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 总长度 | 31.19 mm | 端接样式 | Solder |
| 第一触头极性 | PIN | 触点数 | 9 |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 8µin (0.20µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | Male |
| 系列 | 163A | 已删除 | Compliant |
| 产品特性 | Grounding Indents | 主要用途 | Grounding Indents |
| 端口数 | 1 | 输出配置 | Free Hanging (In-Line) |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
