165X11869XE
| Manufacturer | |

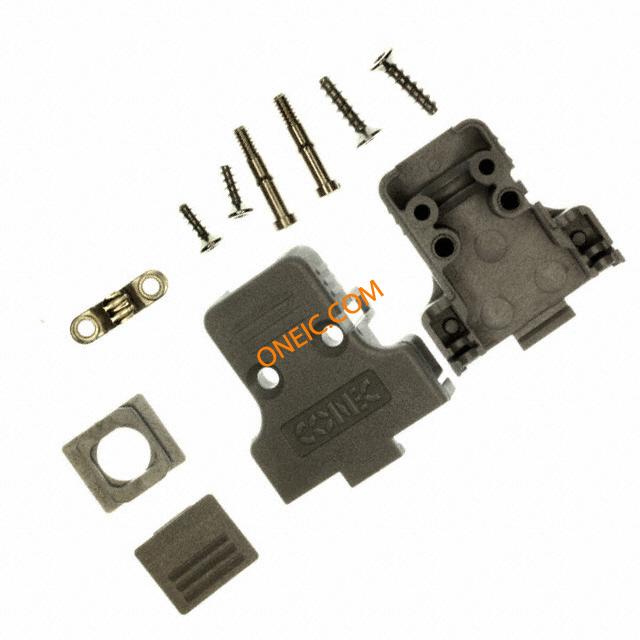

| Description | D-Sub Backshells PLASTIC HOOD 9 POS GRAY TOP ENTRY Connector Accessories D-Sub Hood 9 POS Polycarbonate Gray With Top Cable Exit CONN BACKSHELL DB9 STRAIGHT GREY PLASTIC HOOD WITH TOP AND SIDE CABLE EXIT |
| Category |
商业参数
| 其他名称 | 626-1205 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||

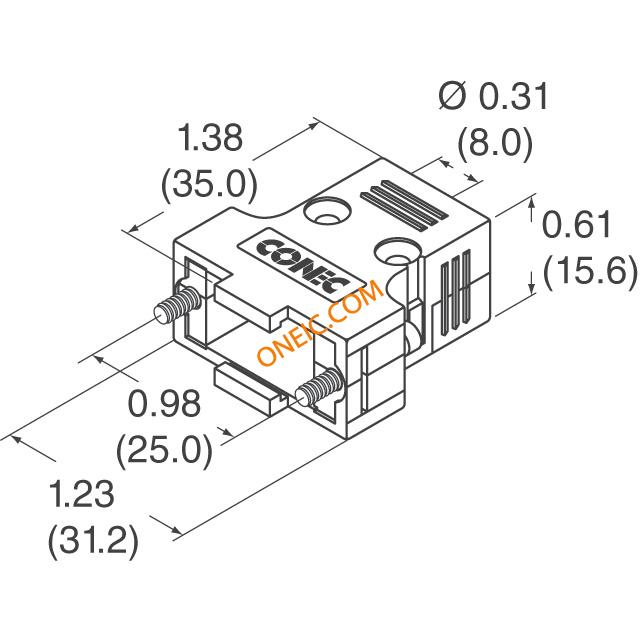

机械参数
| 颜色 | Gray | 深度 | 35 |
| 高度 | 15.6 | 材料（通用） | Polycarbonate, Glass Filled |
| 屏蔽 | Unshielded | 出线方向 | 180° |
| 电缆类型 | Round | 电缆开口 | 180° |
| 外壳镀层 | Tin | 电缆直径 | 8 mm |
| 电缆端类型 | Straight | 外壳材料（壳体） | Polycarbonate (PC) |
| 总长度 | 31.2 | 位数 | 9 |
| 电缆对数 | 1 | 供应商器件封装 | Assembly Hardware, Strain Relief |
产品信息
| 类型 | EMI/RFI Shielded Backshell | 系列 | 165X |
| 产品特性 | Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 主要用途 | Mating Screws 4-40 | 附件类型 | Two Piece Backshell |
