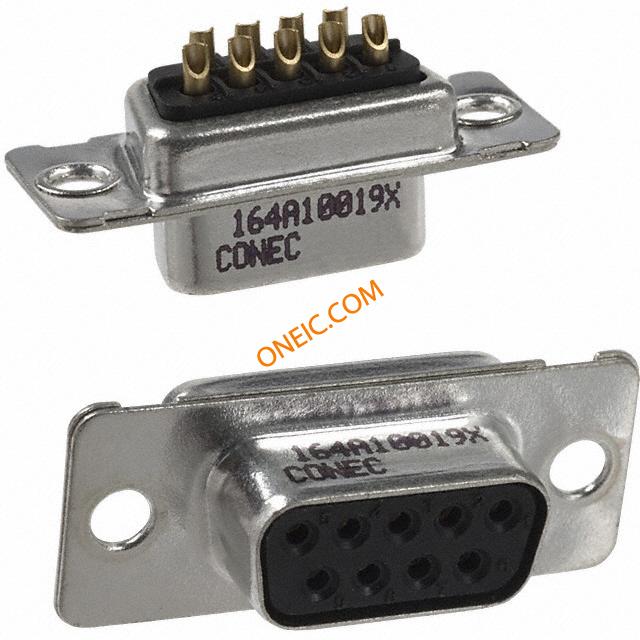

164A10019X

点击放大查看

164A10019X

Manufacturer
CONEC Elektronische Bauelemente GmbH
Description
D-Sub Standard Connectors 9 POS SOLDER CUP AWG 20 FM THRUHOLE Conn D-Subminiature SKT 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB 9POS RECEPT SOLDER
Category
连接器解决方案D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

其他名称626-1031产品类别D-Sub Standard Connectors
标准包装数量132

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant
抗辐射加固No

电气参数

额定电压125V最大额定电流7.5A
最小输入电压125V最小供电电压125V

机械参数

颜色Black深度14.6 mm
高度12.93 mm包装方式Tray
端接方式Solder Cup触头类型Signal
安装类型Straight外壳镀层Tin
连接器类型Receptacle, Female Sockets接触镀层Gold
法兰特征Housing/Shell (Unthreaded)安装样式Panel
排数2外壳材料（壳体）Steel
连接器样式D-Sub触头材料Copper Alloy
壳体材料Polyester总长度31.19 mm
端接样式Solder第一触头极性SKT
触点数9位数9
外壳材料及表面处理Steel, Tin Plated接触镀层厚度8µin (0.20µm)
外壳尺寸，连接器布局1 (DE, E)

产品信息

类型D-Subminiature连接器性别Female
已删除Compliant端口数1

环境参数

工作温度-55°C ~ 125°C

Documents & Media

PDF Document
16K1IFWA.pdf
PDF Document
164A100x9X Drawing
