点击放大查看

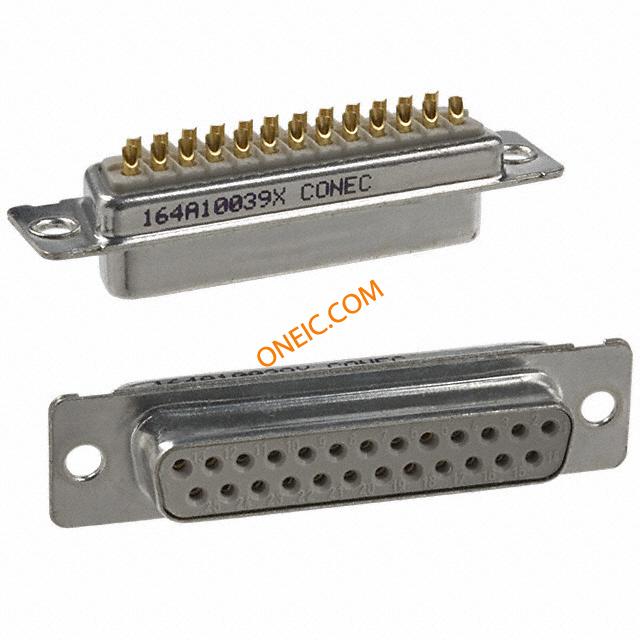

164A10039X
| Manufacturer | |
| Description | D-Sub Standard Connectors 25 POS SOLDER CUP AWG 20 FM THRUHOLE Conn D-Subminiature SKT 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB 25POS RECEPT SOLDER Conn D-Subminiature F 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port |
| Category |
商业参数
| 其他名称 | 626-1033 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 125V | 最大额定电流 | 7.5A |
| 最小输入电压 | 125V | ||
机械参数
| 颜色 | Black | 深度 | 14.6 |
| 高度 | 12.93 | 包装方式 | Tray |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 53.42 |
| 端接样式 | Solder | 第一触头极性 | SKT |
| 触点数 | 25 | 位数 | 25 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 8µin (0.20µm) |
| 外壳尺寸，连接器布局 | 3 (DB, B) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | Female |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
165X10929XE
CONEC
D-Sub Backshells MTLZD PLASTIC HOOD 25 POS Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene With Straight Cable Exit With Jack Screw CONN BACKSHELL DB25 STR METALIZD
165X13239XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS DUAL ENTRY NO HDWR Connector Accessories D-SUB Plastic Hood 25 POSPolypropylene Black With Two Entries Straight And Side Hinged Version CONN BACKSHELL DB25 DL EXIT BLK
165X10159XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLACK Connector Accessories D-SUB Plastic Hood 25 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB25 STR BLACK
165X02709XE
CONEC
D-Sub Backshells METAL HOOD 25 POS ANGLED Connector Accessories D-SUB Metal Hood 25 POS Zinc Die Cast Nickel With Side Cable Exit And Jack Screw CONN BACKSHELL DB25 45DEG METAL
163A17549X
CONEC
D-Sub Standard Connectors 25 POS SOLDER PIN ANGLED MALE THREADED Conn D-Subminiature PIN 25 POS Solder RA Thru-Hole 25 Terminal 1 Port CONN DSUB 25POS PLUG R/A PCB
165X02629XE
CONEC
D-Sub Backshells METAL HOOD 25 POS STRAIGHT Connector Accessories D-SUB Metal Hood 25 POS Zinc Die Cast Nickel With Straight Cable Exit And Jack Screw CONN BACKSHELL DB25 STR METAL
165X11299XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS DUAL ENTRY SLIDELOCK Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Slide Lock CONN BACKSHELL DB25 DL W/SIDELOC
165X11259XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB25 DL EXIT BLK
163A11089X
CONEC
D-Sub Standard Connectors 25 POS SOLDER CUP AWG 20 MALE THRUHOLE Conn D-Subminiature PIN 25 POS Solder Cup ST Panel Mount 25 Terminal 1 Port CONN DSUB 25POS PLUG SOLDER
165X13199XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS Connector Accessories D-SUB Plastic Hood 25 POS Polyamide With Straight Cable Exit CONN BACKSHELL DB25 STR PLASTIC
165X10409XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK STRIAGHT ENTRY Connector Accessories D-SUB One Piece Plastic Hood 25 POS Polyamide Straight Entry CONN BACKSHELL DB25 STR BLACK
165X10459XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS BLK SIDE ENTRY Connector Accessories D-SUB One Piece Plastic Hood 25 POS Polyamide Side Entry CONN BACKSHELL DB25 90DEG BLACK
165X11889XE
CONEC
D-Sub Backshells PLASTIC HOOD 25 POS GRAY DUAL ENTRY Connector Accessories D-Sub Hood 25 POS Polycarbonate Gray With Top And Side Cable Exit CONN BACKSHELL DB25 DL EXIT GREY

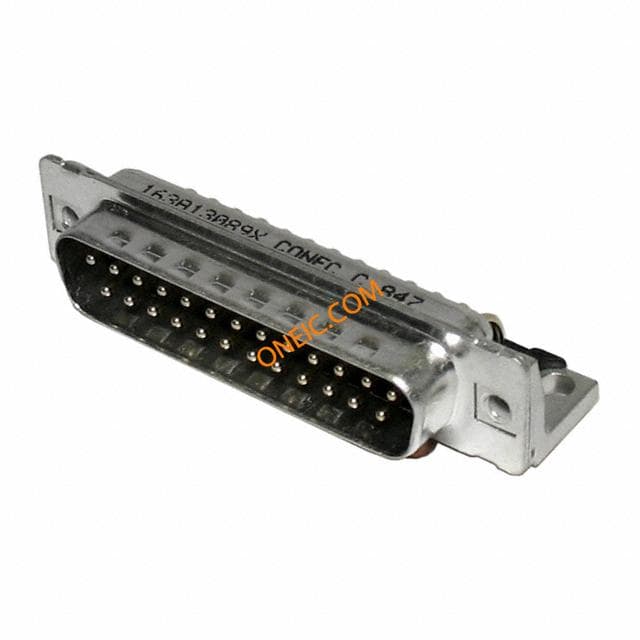

163A13089X
