165X10159XE
| Manufacturer | |

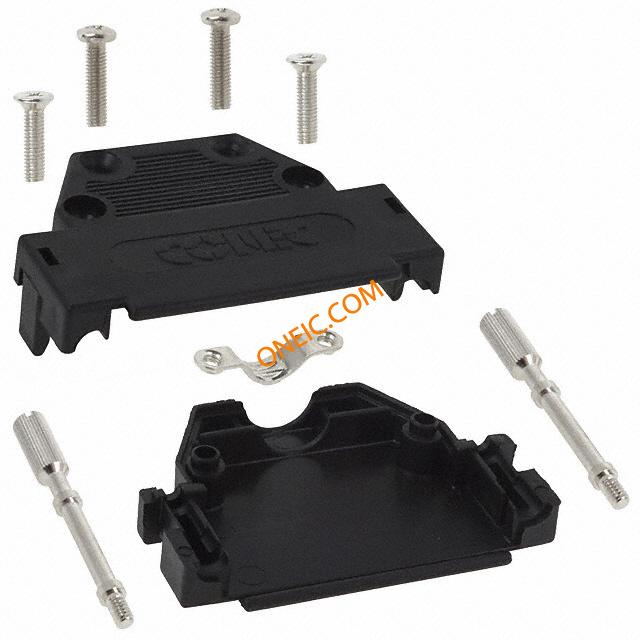

| Description | D-Sub Backshells PLASTIC HOOD 25 POS BLACK Connector Accessories D-SUB Plastic Hood 25 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB25 STR BLACK |
| Category |
Business
| Other Names | 626-1189 | Product Category | D-Sub Backshells |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Mechanical
| Color | Black | Depth | 39.75 |
| Height | 14.5 | Material | Polyamide (PA), Nylon, Glass Filled |
| Shielding | Unshielded | Cable Exit | 180° |
| Cable Type | Round | Cable Opening | 180° |
| Shell Plating | Tin | Cable Diameter | 10.5 mm |
| Cable End Type | Straight | Shell Material | Polyamide (PA) |
| Length - Overall | 56 | Number of Positions | 25 |
| Number of Cable Pairs | 1 | Supplier Device Package | Assembly Hardware, Cable Clamp |
Product Info
| Type | Strain Relief Backshell | Series | 165X |
| Features | Mating Screws 4-40 | Hardware | Assembly Hardware, Cable Clamp |
| Main Purpose | Mating Screws 4-40 | Accessory Type | Two Piece Backshell |
