点击放大查看

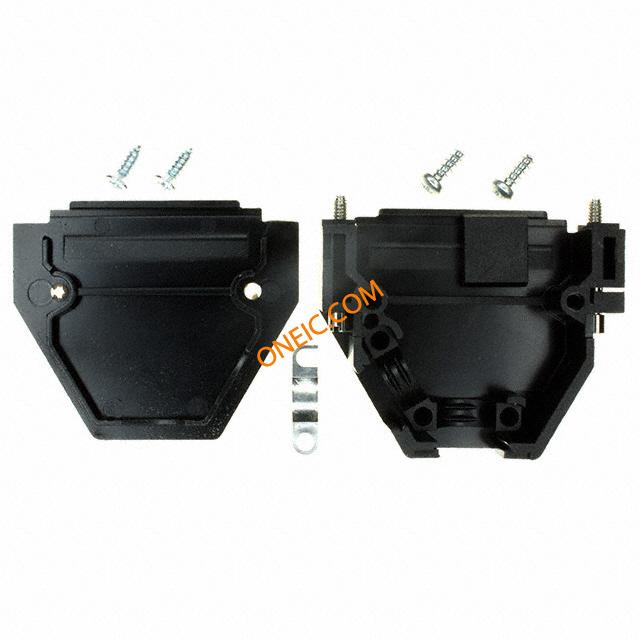

165X11259XE
| Manufacturer | |
| Description | D-Sub Backshells PLASTIC HOOD 25 POS BLK DUAL ENTRY Connector Accessories D-SUB Plastic Hood 25 POS Acrylonitrile Butadiene Styrene Black With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB25 DL EXIT BLK |
| Category |
商业参数
| 其他名称 | 626-1211 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||

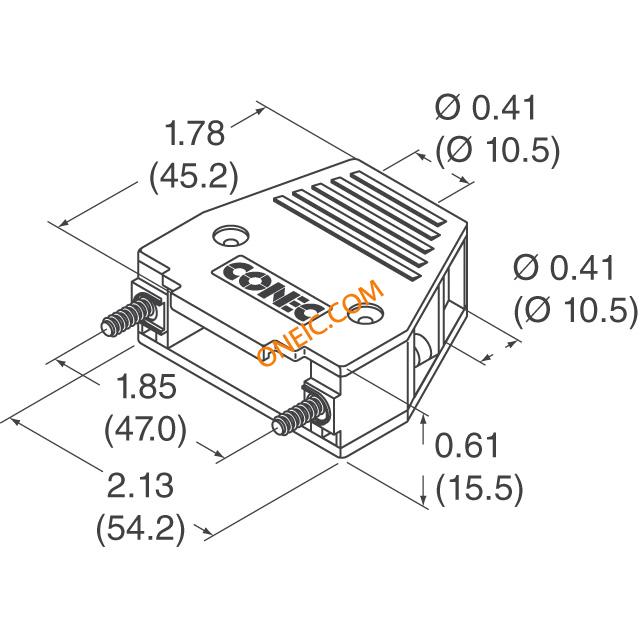

机械参数
| 颜色 | Black | 深度 | 45.2 |
| 高度 | 15.5 | 材料（通用） | ABS |
| 屏蔽 | Unshielded | 出线方向 | 45°, 180° |
| 电缆类型 | Round | 外壳镀层 | Tin |
| 电缆直径 | 10.5 mm | 电缆端类型 | Variable Entries |
| 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) | 总长度 | 54.2 |
| 位数 | 25 | 电缆对数 | 2 |
产品信息
| 类型 | Strain Relief Backshell | 产品特性 | Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 附件类型 | Two Piece Backshell |
