点击放大查看

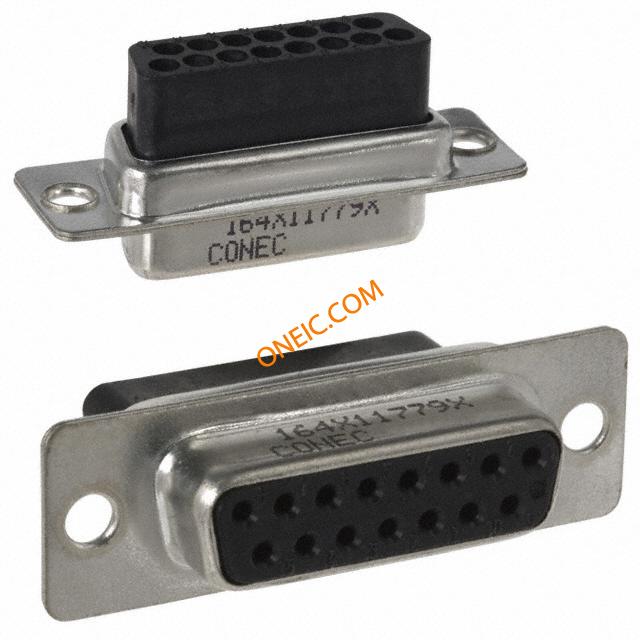

164X11779X
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS CRIMP FEMALE Conn Housing SKT 15 POS Crimp ST Panel Mount CONN DSUB 15POS RECEPT CRIMP |
| Category |
Business
| Other Names | 626-1069 | Product Category | D-Sub Standard Connectors |
| Standard Package | 10 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Color | Black | Height | 12.93 mm |
| Packaging | Tray | Contact Form | Signal |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Receptacle for Female Contacts |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Housing Material | Steel |
| Length - Overall | 39.52 mm | Termination Style | Crimp |
| Number of Contacts | 15 | Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Number of Positions | 15 | Shell Finish Thickness | 320µin (8.13µm) |
| Shell Material, Finish | Steel, Tin Plated | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | Female | Series | 164X |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
