点击放大查看

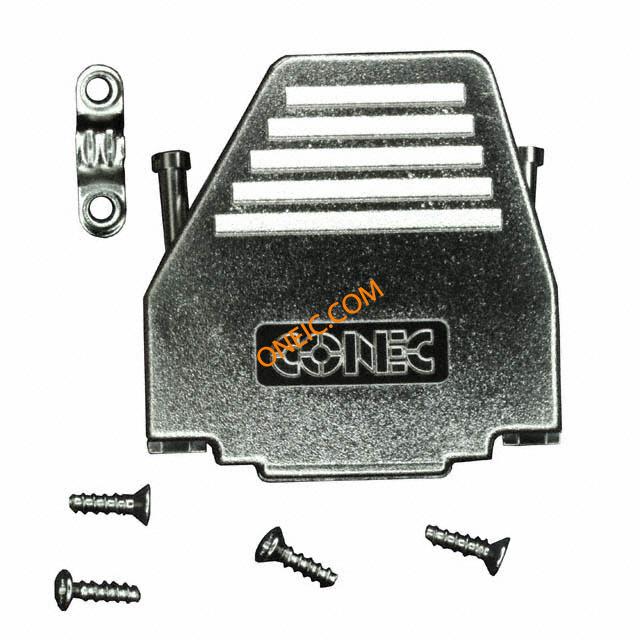

165X11329XE
| Manufacturer | |
| Description | D-Sub Backshells MTLZD PLASTIC HOOD 15P W/JACK SCREW Connector Accessories D-SUB Plastic Hood 15 POS Acrylonitrile Butadiene Styrene With Top And Side Cable Exit With Jack Screw CONN BACKSHELL DB15 DL METALIZED |
| Category |
商业参数
| 其他名称 | 626-1218 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 深度 | 41.2 | 高度 | 15.5 |
| 材料（通用） | Plastic, Metallized | 屏蔽 | Shielded |
| 出线方向 | 45°, 180° | 电缆类型 | Round |
| 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) | 总长度 | 40 |
| 位数 | 15 | ||
产品信息
| 类型 | Hood | 产品特性 | Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 附件类型 | Two Piece Backshell |
