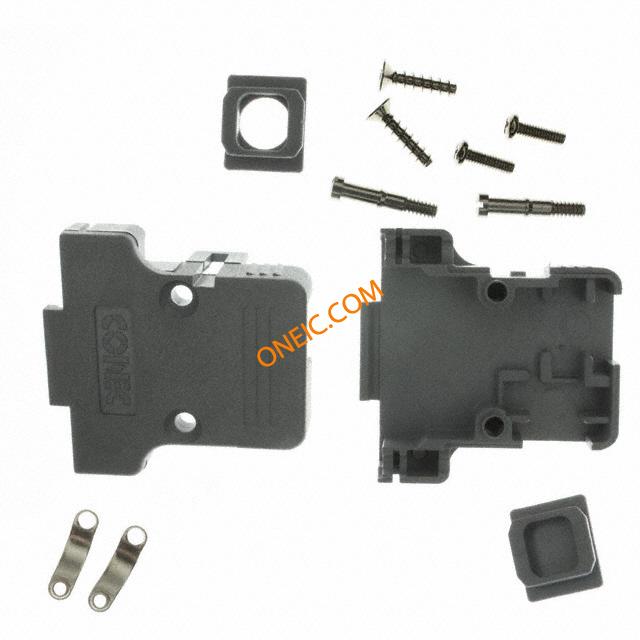

165X11879XE
| Manufacturer | |
| Description | D-Sub Backshells PLASTIC HOOD 15 POS GRAY DUAL ENTRY Connector Accessories D-Sub Hood 15 POS Polycarbonate Gray With Top And Side Cable Exit CONN BACKSHELL DB15 DL EXIT GREY |
| Category |
商业参数
| 其他名称 | 626-1206 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | No | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数

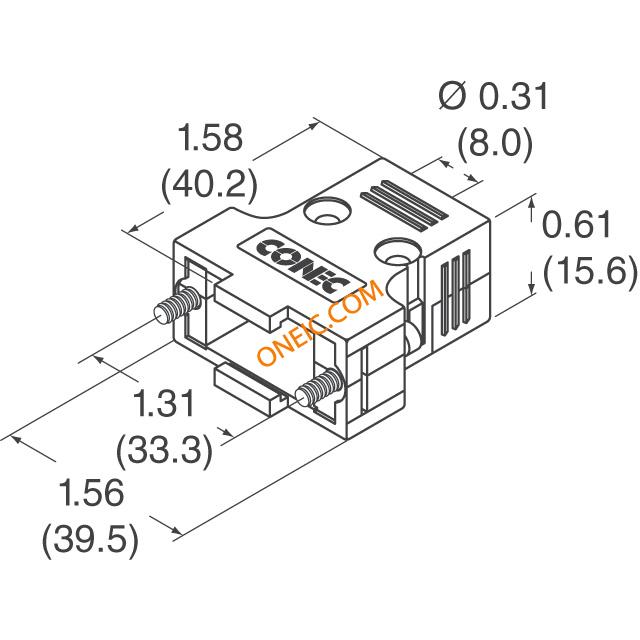

| 颜色 | Gray | 深度 | 40.2 mm |
| 高度 | 15.6 mm | 材料（通用） | Polycarbonate, Glass Filled |
| 屏蔽 | Unshielded | 出线方向 | 90°, 180° |
| 电缆类型 | Round | 电缆开口 | 90°, 180° |
| 安装类型 | Straight/Right Angle | 外壳镀层 | Tin |
| 电缆直径 | 8 mm | 电缆端类型 | Variable Entries |
| 外壳材料（壳体） | Polycarbonate (PC) | 总长度 | 39.5 mm |
| 位数 | 15 | 电缆对数 | 2 |
| 供应商器件封装 | Assembly Hardware, Strain Relief | ||
产品信息
| 类型 | EMI/RFI Shielded Backshell | 系列 | 165X |
| 产品特性 | Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 主要用途 | Mating Screws 4-40 | 附件类型 | Two Piece Backshell |
