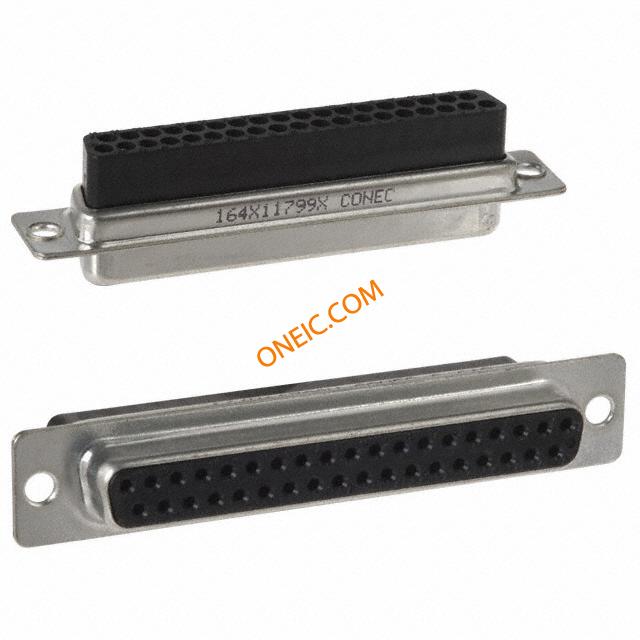

点击放大查看

164X11799X

Manufacturer	CONEC Elektronische Bauelemente GmbH
Description	D-Sub Standard Connectors 37 POS CRIMP FEMALE Conn Housing SKT 37 POS Crimp ST Panel Mount CONN DSUB 37POS RECEPT CRIMP Conn Housing SKT 37 POS ST
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	626-1071	产品类别	D-Sub Standard Connectors
标准包装数量	10

合规参数

RoHS

RoHS Compliant

欧盟RoHS

Compliant

机械参数

颜色	Black	高度	12.93
包装方式	Tray	触头类型	Signal
安装类型	Straight	外壳镀层	Tin
连接器类型	Receptacle for Female Contacts	法兰特征	Housing/Shell (Unthreaded)
安装样式	Wire	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub
壳体材料	Steel	总长度	69.7
端接样式	Crimp	触点数	37
介电材料	Polybutylene Terephthalate (PBT), Glass Filled	位数	37
外壳镀层厚度	320µin (8.13µm)	外壳材料及表面处理	Steel, Tin Plated
外壳尺寸，连接器布局	4 (DC, C)

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	Female

环境参数

工作温度

-55°C ~ 125°C

Documents & Media

PDF Document

16K1A177A.pdf

PDF Document

164X117y9X Drawing
