165X10169XE
| Manufacturer | |

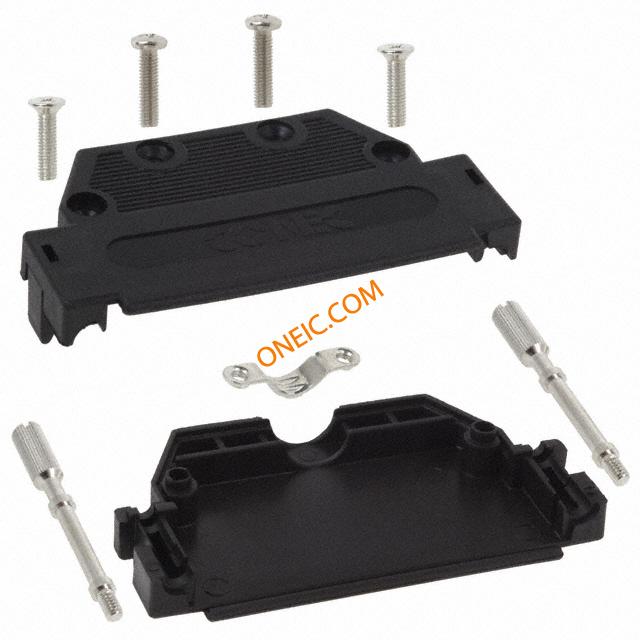

| Description | D-Sub Backshells PLASTIC HOOD 37 POS BLACK Connector Accessories D-SUB Plastic Hood 37 POS Polyamide Black Straight Cable Exit, Jack Screw Single Packed Version CONN BACKSHELL DB37 STR BLACK |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | 626-1190 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||

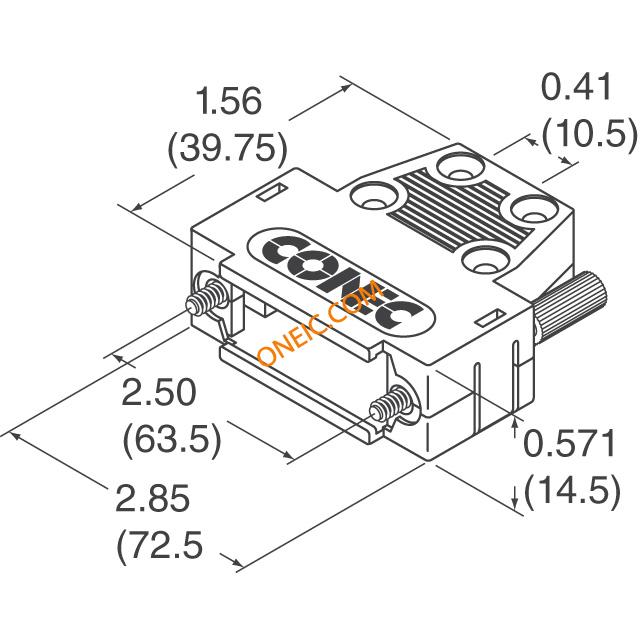

机械参数
| 颜色 | Black | 深度 | 39.75 |
| 高度 | 14.5 | 材料（通用） | Polyamide (PA), Nylon, Glass Filled |
| 屏蔽 | Unshielded | 出线方向 | 180° |
| 电缆类型 | Round | 外壳镀层 | Tin |
| 电缆直径 | 10.5 mm | 电缆端类型 | Straight |
| 外壳材料（壳体） | Polyamide (PA) | 总长度 | 72.5 |
| 位数 | 37 | 电缆对数 | 1 |
产品信息
| 类型 | Strain Relief Backshell | 产品特性 | Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Cable Clamp | 附件类型 | Two Piece Backshell |
