点击放大查看

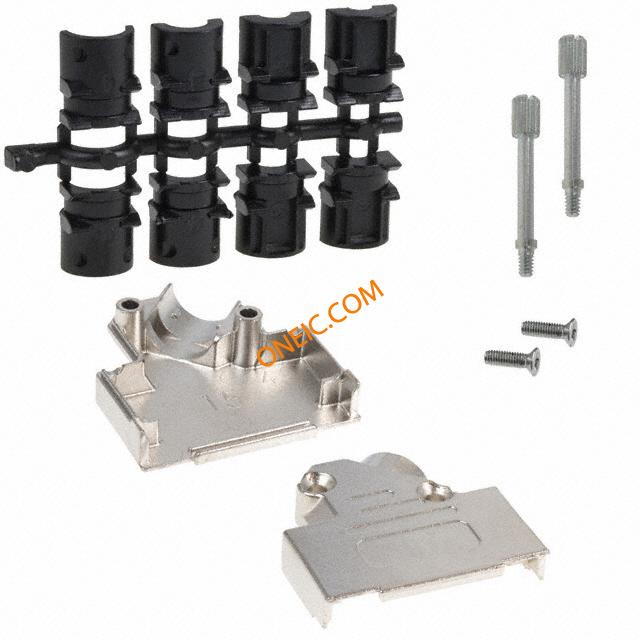

165X02699XE
| Manufacturer | |
| Description | D-Sub Backshells METAL HOOD 15 POS ANGLED Connector Accessories D-SUB Metal Hood 15 POS Zinc Die Cast Nickel With Side Cable Exit And Jack Screw CONN BACKSHELL DB15 45DEG METAL |
| Category |
商业参数
| 其他名称 | 626-1181 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||

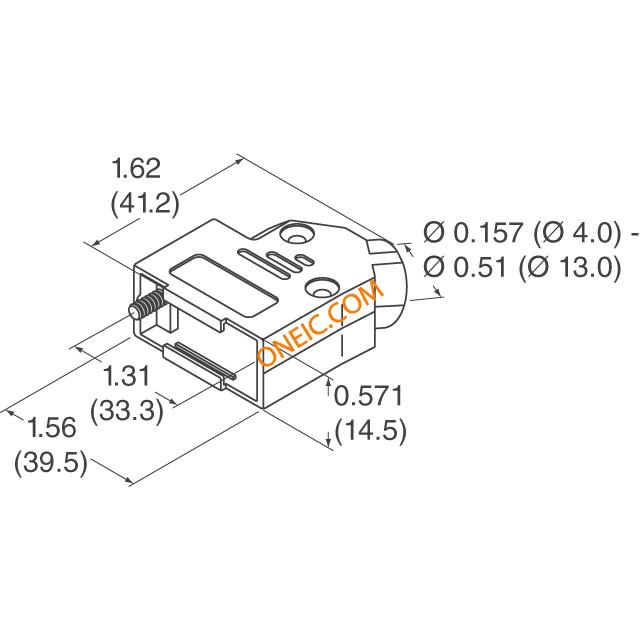

机械参数
| 颜色 | Silver | 深度 | 40.2 mm |
| 高度 | 14.5 mm | 镀层 | Nickel |
| 材料（通用） | Metal, Zinc | 屏蔽 | Shielded |
| 出线方向 | 45° | 电缆类型 | Round |
| 电缆开口 | 45° | 外壳镀层 | Nickel |
| 电缆端类型 | Side Entry | 外壳材料（壳体） | Zinc Die Cast |
| 材料表面处理 | Nickel | 总长度 | 39.5 mm |
| 位数 | 15 | 电缆对数 | 1 |
| 供应商器件封装 | Assembly Hardware, Strain Relief | ||
产品信息
| 类型 | Strain Relief Backshell | 系列 | 165X |
| 已删除 | Compliant | 产品特性 | Mating Screws 4-40 |
| 硬件配件 | Assembly Hardware, Strain Relief | 主要用途 | Mating Screws 4-40 |
| 附件类型 | Two Piece Backshell | ||
环境参数
| 工作温度 | -40C to 120C | ||
